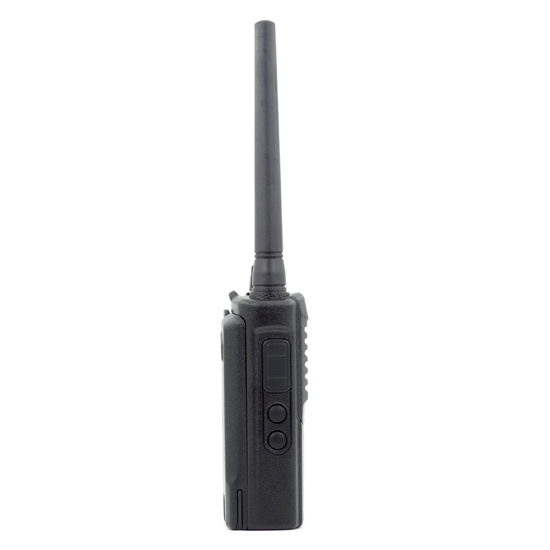

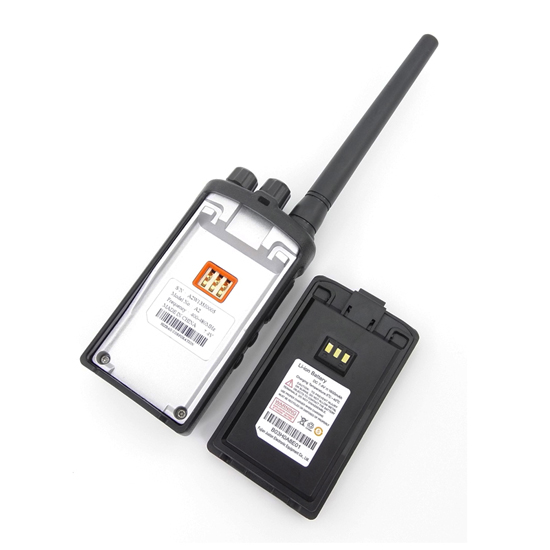

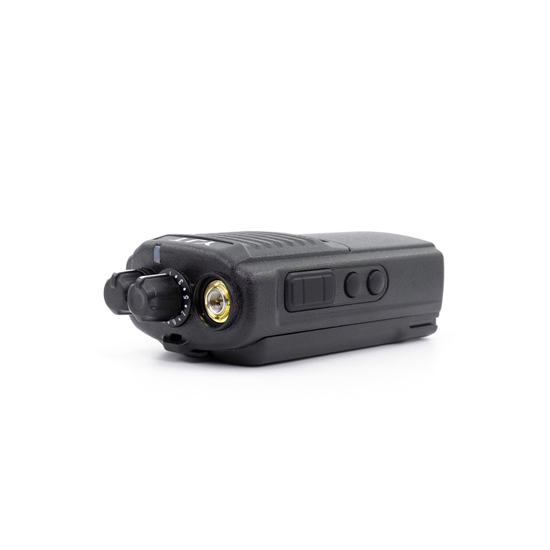

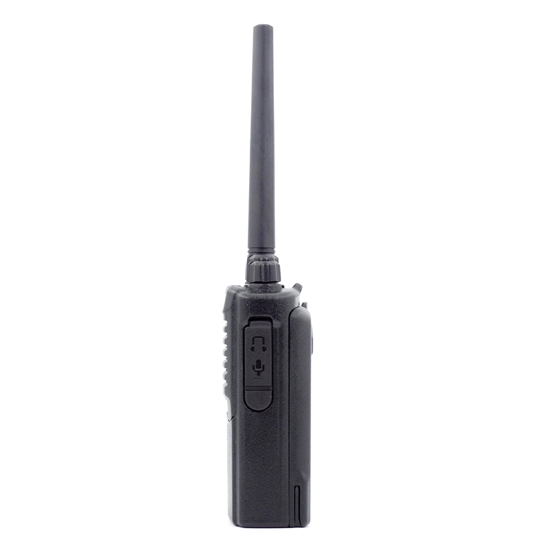

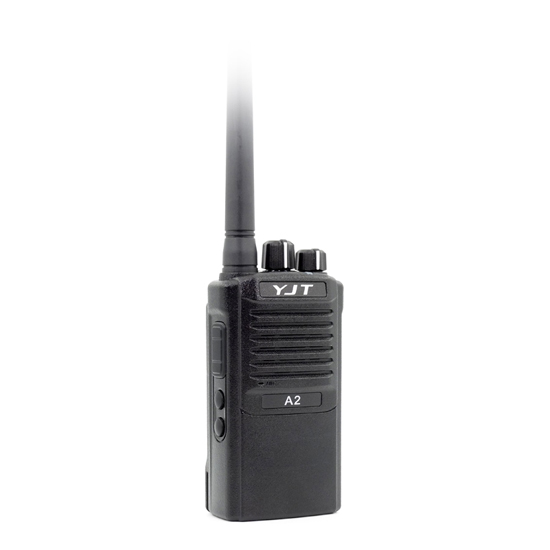

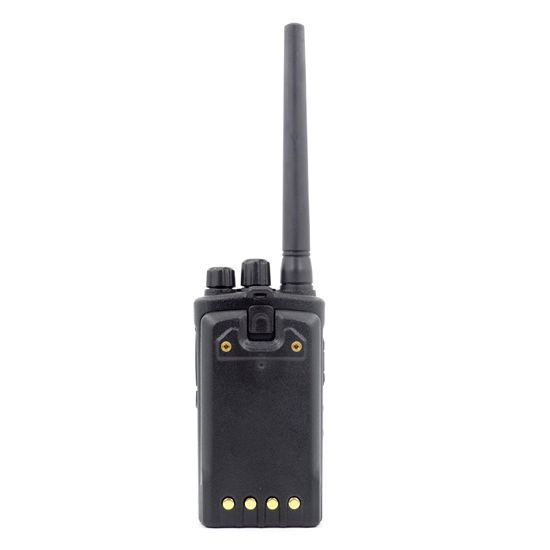

5W UHF A2 Radio (CE&FCC)

  • Product Origin:

    China
  • Item NO.:

    A2
  • Shipping Port:

    Xiamen/Shenzhen
  • Color:

    Black
  • Payment:

    T/T
  • MOQ:

    2
Product Detail

Functions:


-High/Low Power

-Group Calling

- Reverse Frequency/ Offset

-VOX

-SQL

-Scan

-FTMF/PTT ID

-TOT

-Tail Elimination

-Emergency Call

-CTCSS 50/ DCS 105 Support Non-standard

-BCLO

-Voice Report

-Programming Encryption


General
Frequency range UHF:400-520MHz/245MHz VHF:136-174MHz
Number of channels 16
Channel Spacing25KHZ / 12.5KHZ
Operating voltage 7.4V
Battery capacity 1300 mAh Li-ion / 1600 mAh Li-ion
Operating temperature -20℃ to +50℃
Antenna impedance: 50Ω
Dimensions: 112.5x59x37MM
Weight: 230g
Transmit
Output power: 5W
ModulationF3E
Audio distortion: ≤5%
FM Noise≤-45dB
Spurious Harmonics-65dB
Receive
Receiving sensitivity≤-123dBm @25k
Audio output power 1W
Audio distortion rate ≤5%
S/N≥45dB
Rated output power750mW
Selectivity≤-65dB
Intermodulation≤-55dB
