12W UHF W518 Radio (Waterproof IP68)

  • Product Origin:

    China
  • Item NO.:

    W518
  • Shipping Port:

    Xiamen/Shenzhen
  • Color:

    Black
  • Payment:

    T/T
  • MOQ:

    2
Product Detail

Functions:


-Squelch
-Low battery alarm
-Battery Save
-Emergency Alarm
-VOX
-DTMF
-TOT
-Monitor

-Scan


General
Frequency range: 400-520MHz
Number of channels: 198
Channel Spacing:25KHZ / 12.5KHZ
Working voltage: 7.5v±10%
Battery capacity: 3800 mAH Lithium battery
Working temperature: -30℃ to +60℃
Frequency stability: ±2.5ppm (-30℃ to +60℃)
Antenna impedance: 50Ω
Dimensions: 130x60x39MM
Weight: 300g
Waterproof level: IP68
Transmit
Carrier frequency tolerance: ±2.5ppm (-30℃ to +60℃)
Carrier output power: 12W
Modulation limit power: ≤5KHz; narrowband ≤2.5K
Audio distortion: ≤5%
Emitting current cluster: ≤150OmA
Modulation characteristics: ±3dB
Adjacent channel power: ≥65dB
Occupied bandwidth: ≤16KHz
Receive
Receiving sensitivity: 12dB (SINAD) 0.2uV
Audio output power: 1W
Audio distortion rate: ≤5%
Audio response: ±3dB
Co-channel suppression: ≥8dB
Adjacent channel selectivity: ≥55dB
Intermodulation immunity: ≥55dB
Stray response immunity: >50
Blocking characteristics: ≥84dB

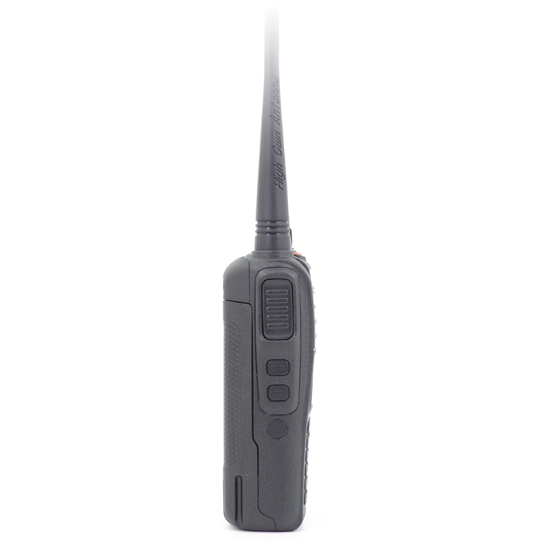

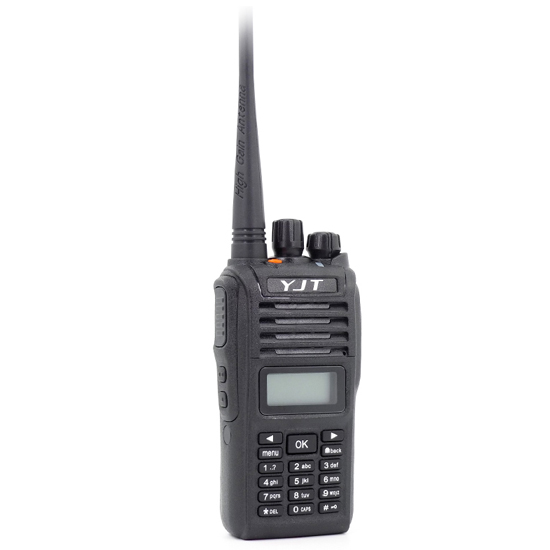

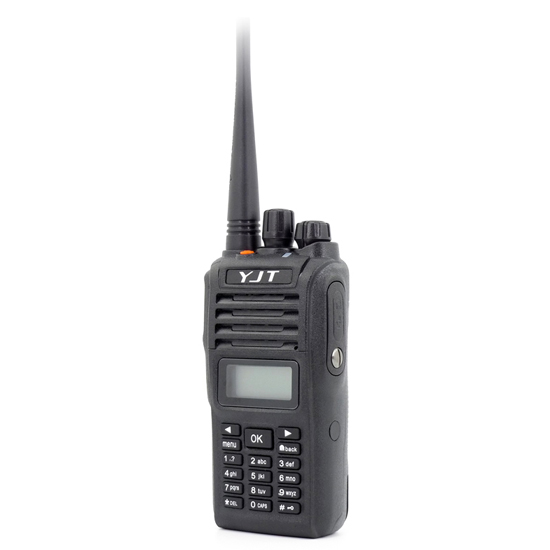

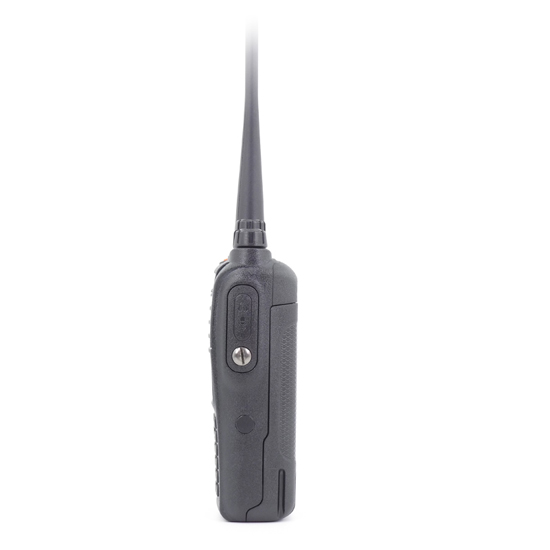

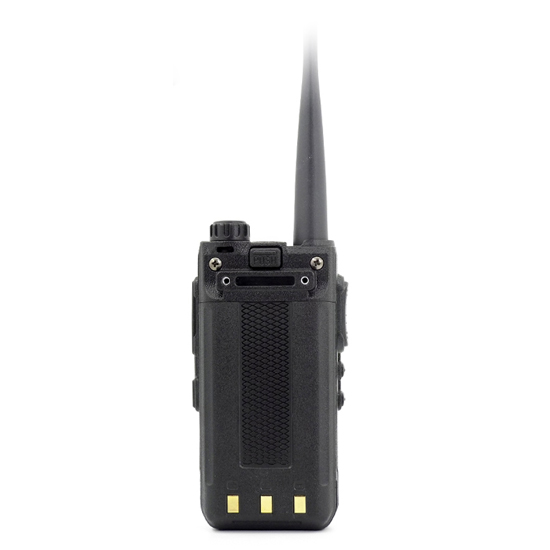

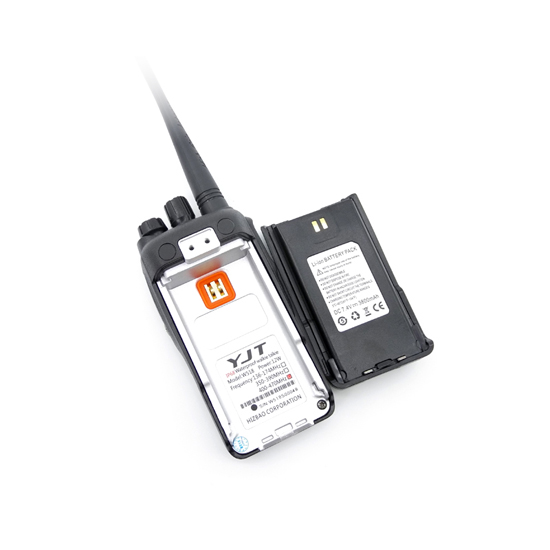

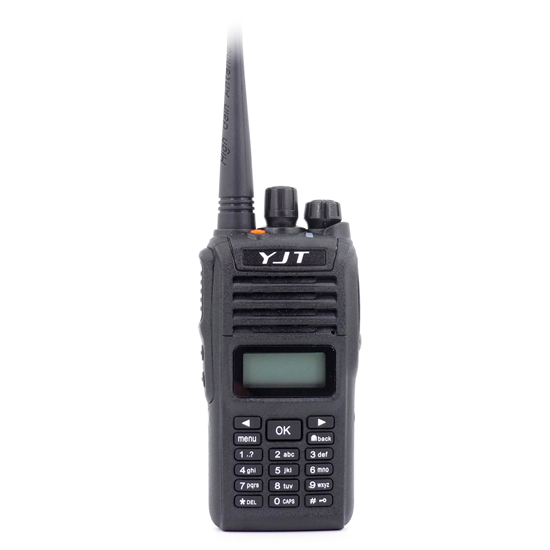

12W W518.jpg
