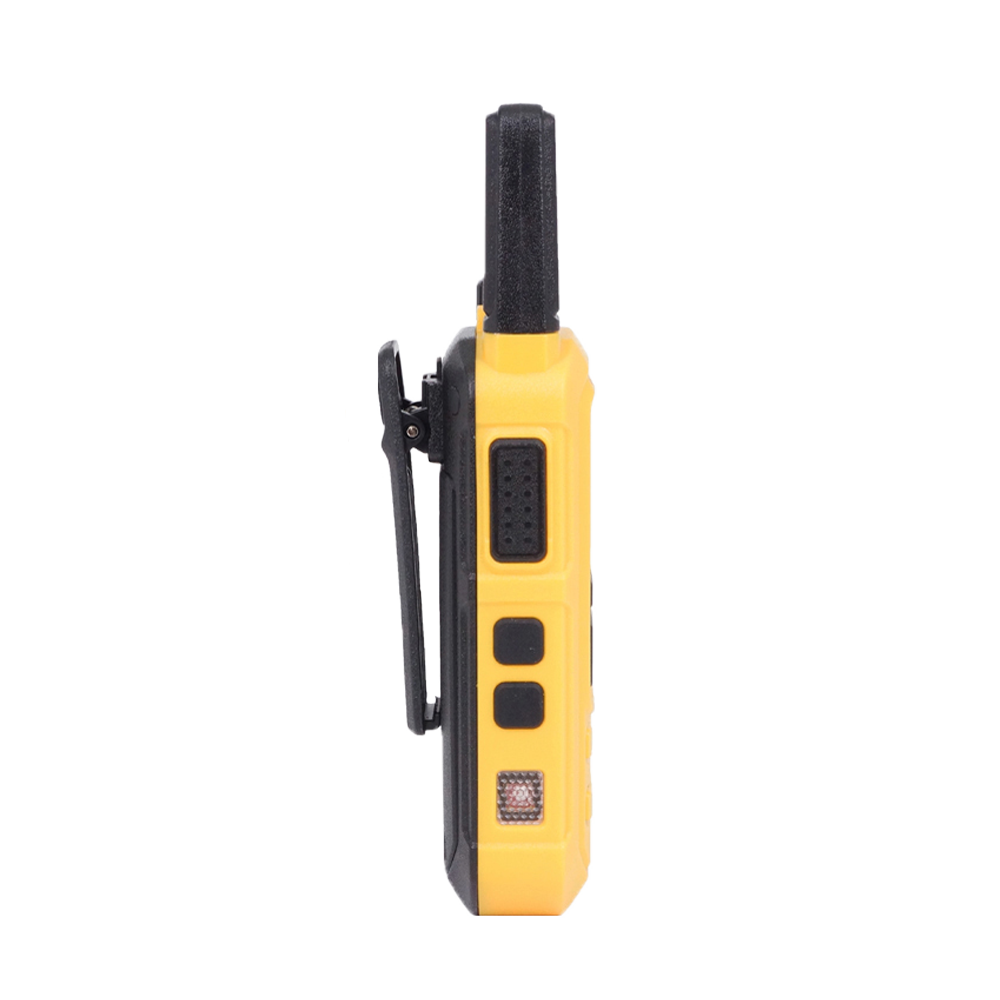

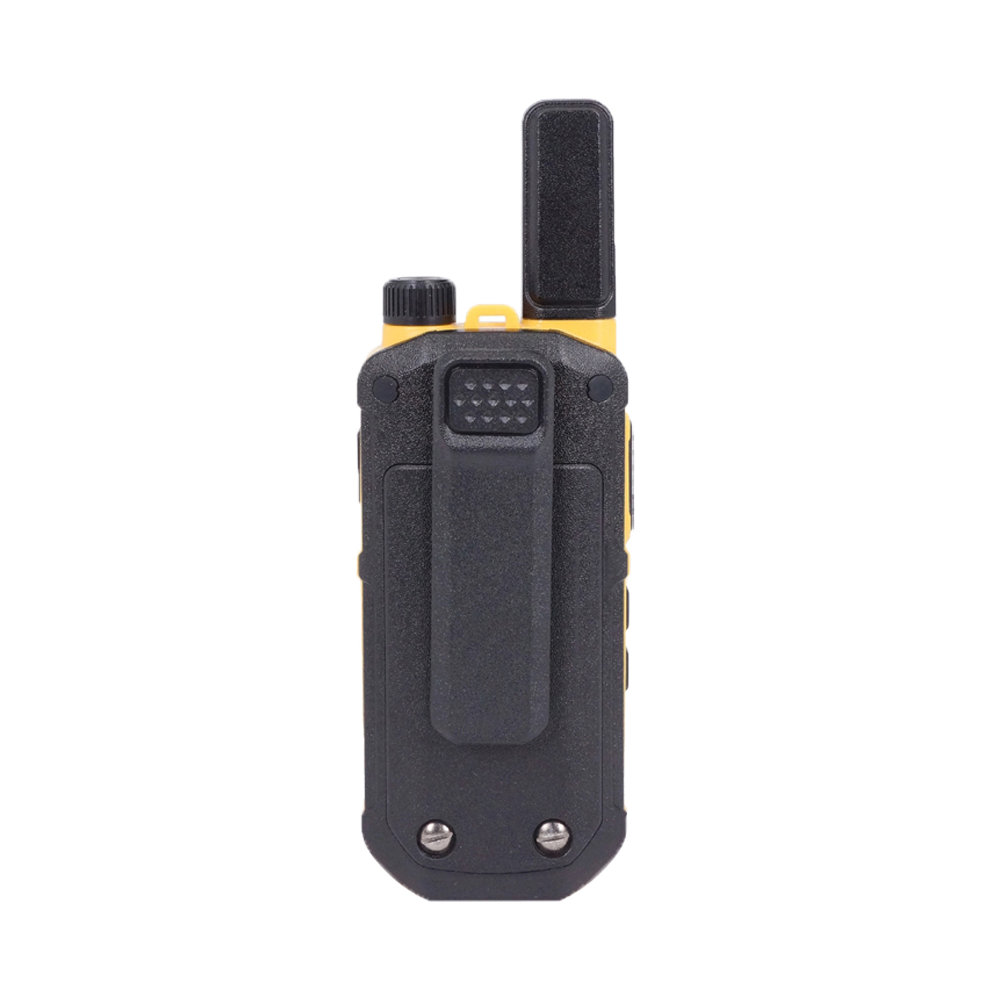

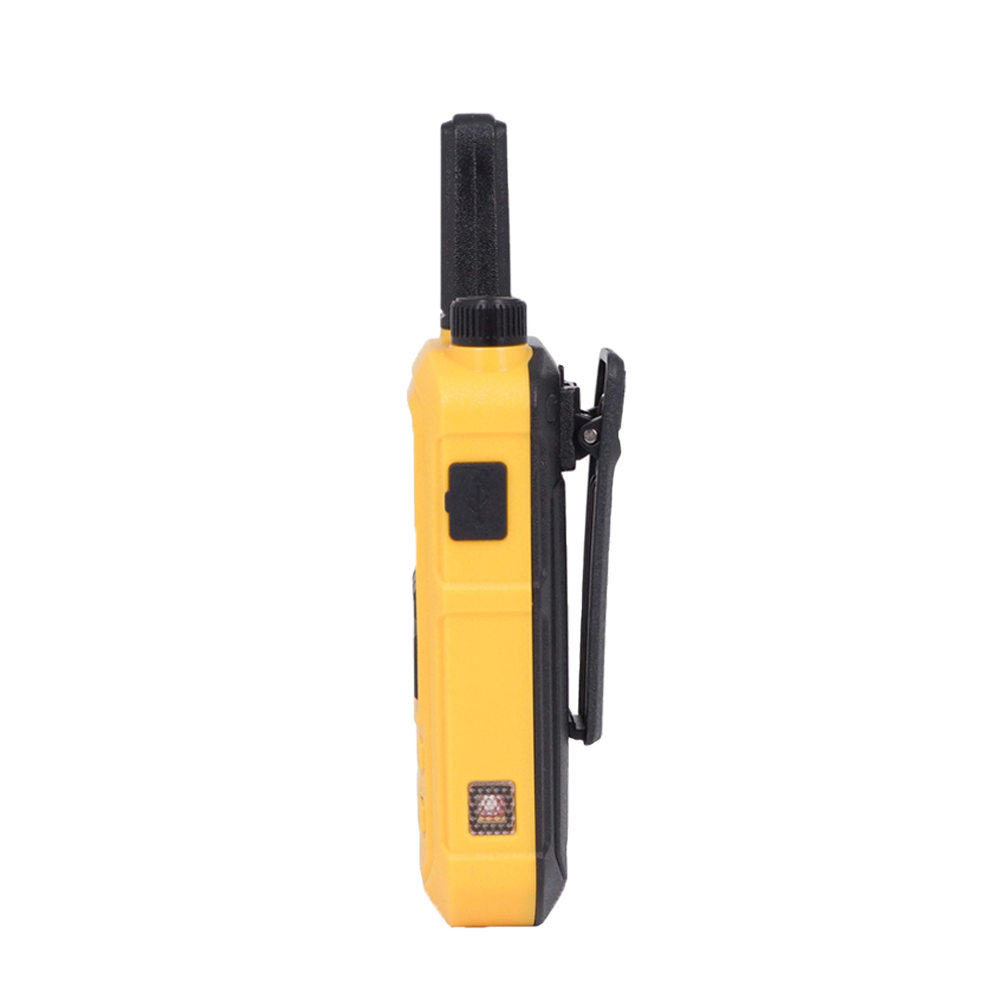

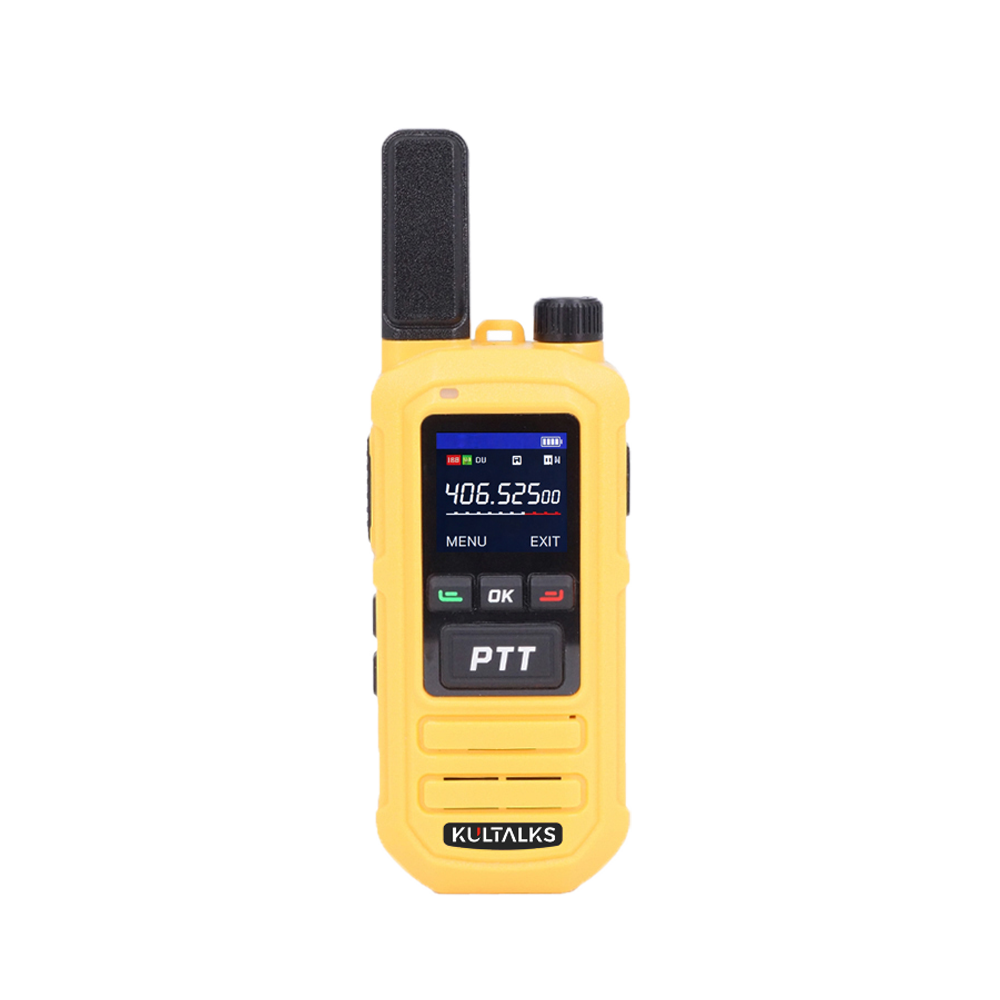

KT26 Analog Two Way Radio

  • 480-hour Ultra-long Standby Time

  • Bluetooth Function(Optional)

  • GPS Function (Optional)

  • Type-C Charger Port

  • Water Drop Alarm

  • Man Down Alarm

  • Floating Function

  • IP68 Waterproof

  • Dual PTT

  • Overview
  • Details
Dual PTTIP68 Waterproof
Floating FunctionMan Down Alarm
Water Drop AlarmType-C Charger Port
GPS Function (Optional)Bluetooth Function(Optional)
480-hour Ultra-long Standby Time

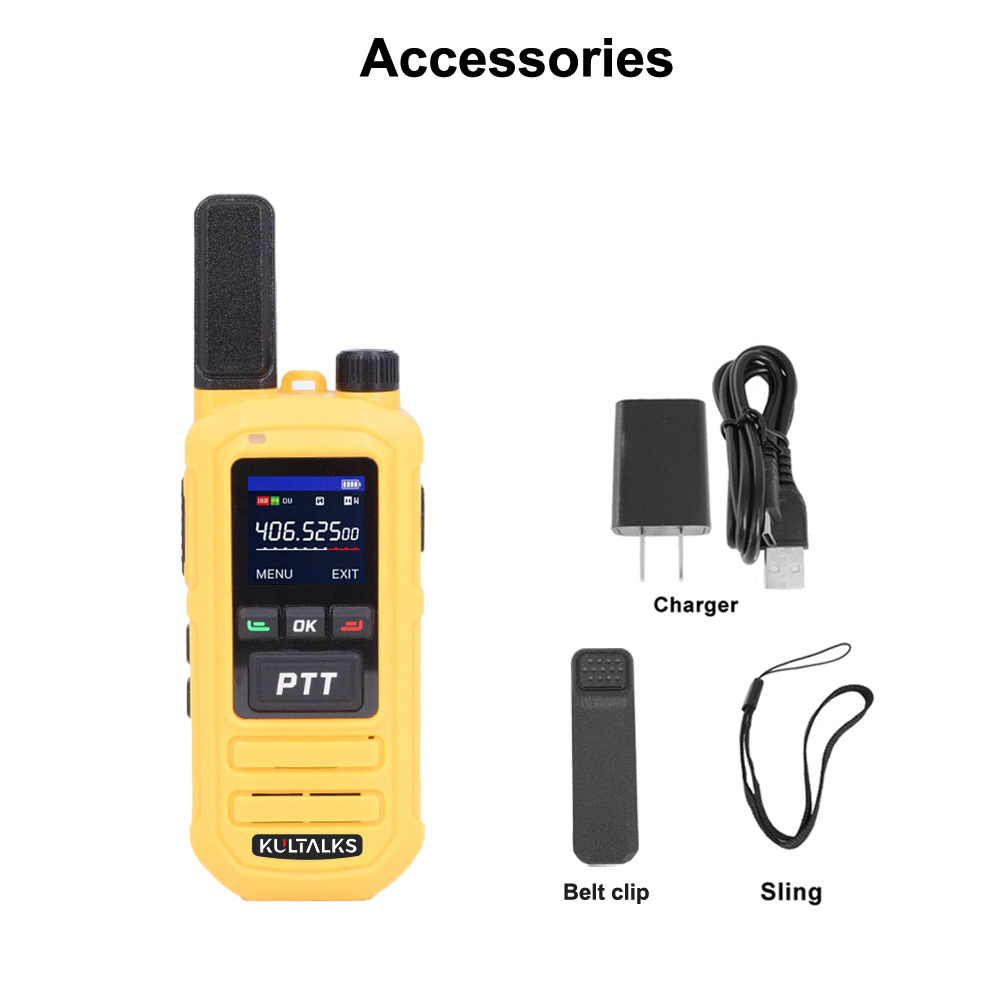

Accessories
STANDARD SPECIFICATIONS
FrequencyUHF:400-470MHz
Channel capacity22
Channel space12.5KHz/25KHz
Voltage3.7vdc
Antenna impedance50Ω
Battery capacity3000mAH
Work temperature-20℃ to +60℃
Size(include battery, exclude antenna)171*56*35mm
Weight(include battery and antenna)184g
RECEIVING PERFORMANCE
Receiving Sensitivity- 122dbm( 12dB SINAD )
Adjcent Channel Selectivity12K≥60dB /25K≥65dB
Block≥82dB
Bigcnal-to-Noise Ratio≥40dB
Received Audio Power≥0.5w
Audio Distortion≤5%
Audio response+1~-3dB
Standby Time20-day
TRANSMITTING PERFORMANCE
Modulation Method4FSK
Frequency stability±2ppm
Modulation Limitation12.5K≤2.5kHz/25K≤5kHz
Transmitting Power≤5W
Modulation distortion≤5%
Residual frequency modulation-45dB
Adjacent channel power-70dB
Emission stray-36dBm
