Home KT19
KT19 Analog Two Way Radio

  • Wireless Copy Frequency

  • Easy Back Clip Design

  • Type-C Charger Port

  • Scanning Function

  • QT/DQT Function

  • VOX Function

  • Overview
  • Details
VOX FunctionQT/DQT Function
Scanning FunctionType-C Charger Port
Easy Back Clip DesignWireless Copy Frequency

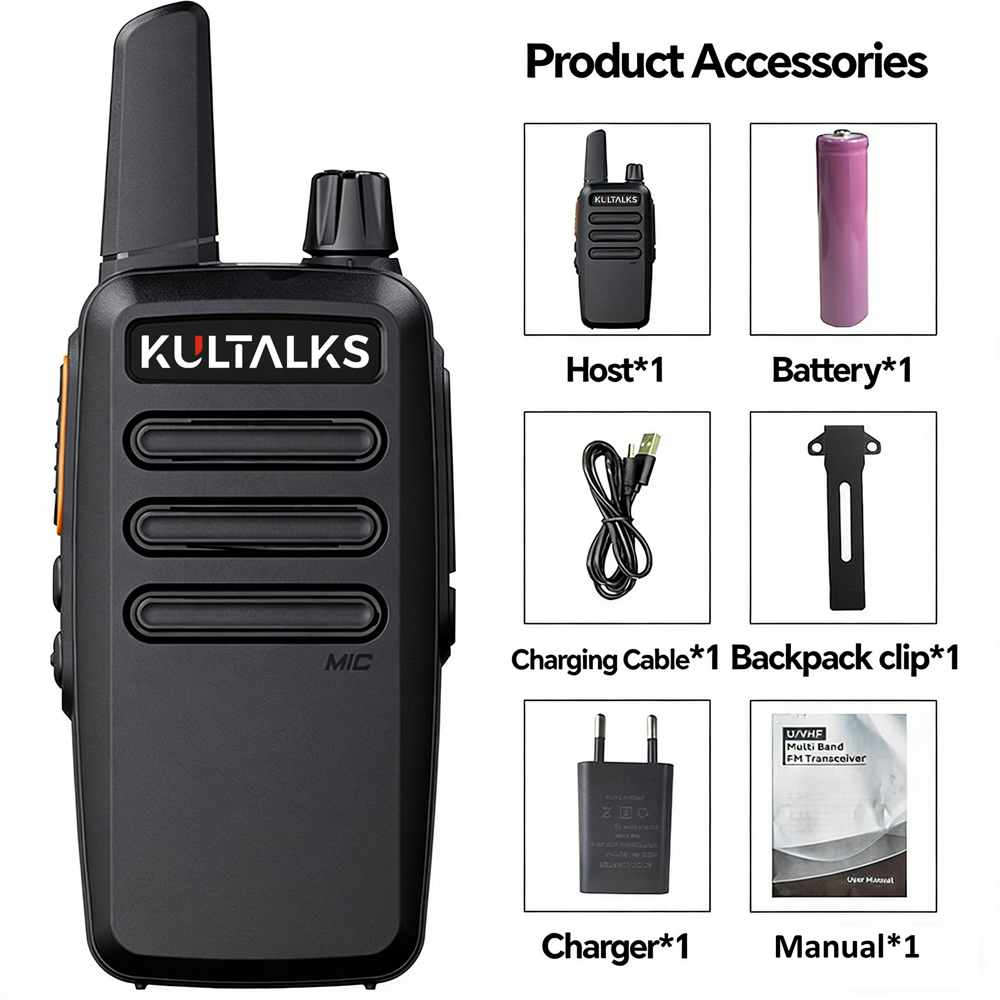

Accessories
GENERAL
FrequencyUHF:400-470MHz
Channel capacity16
Channel space12.5KHZ
Frequency stability±2.5ppm
Voltage3.7vdc
Antenna impedance50Ω
Work temperature-20℃ to +50℃
Battery capacity1500mAh
Size(include battery, exclude antenna)220x200x40mm
Weight(include battery and antenna)121g
TRANSMITTER
Output power2W
Modulation limit+2.5kHz@12.5kHz
FM Hum & Noise≤45dB
Modulation maximum deviation≤5KHz
RECEIVER
Sensitivity (12 dB SINAD)8-12mW
Adjacent channel selectivity≥65dB
Audio output power≥350mw
Audio distortion<10%


Downloads
Title Language Size
