Home KT36
KT36 Analog Two Way Radio

  • 5000mAh for Extended Battery Life

  • Silky Skin-Sensation Design

  • 45-Day Extra-Long Standby

  • Power Bank Function

  • Type-C Charger Port

  • LED Display Screen

  • FM Radio

  • 99 Channel

  • Overview
  • Details
FM Radio99 Channel
LED Display ScreenType-C Charger Port
Power Bank Function45-Day Extra-Long Standby
Silky Skin-Sensation Design5000mAh for Extended Battery Life

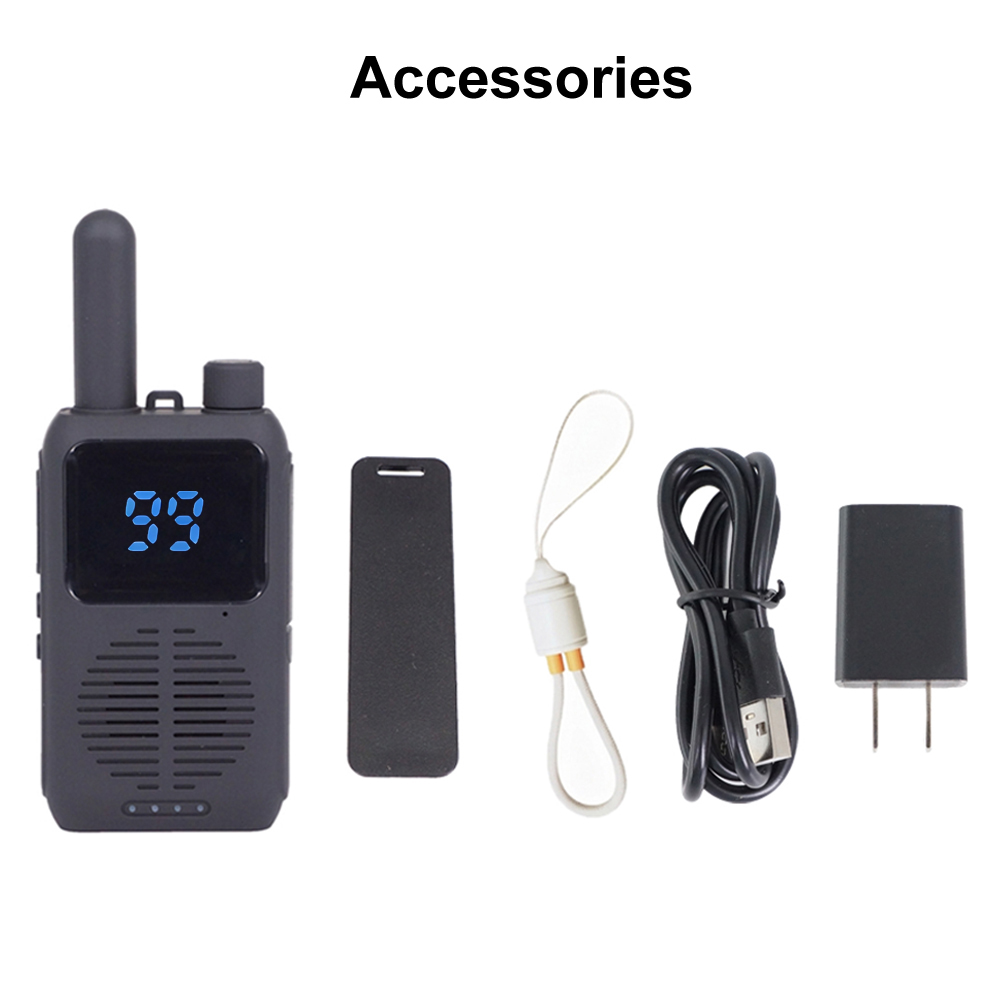

Accessories
STANDARD SPECIFICATIONS
FrequencyUHF:400-470MHz
Channel capacity99
Channel space12.5KHz/25KHz
Voltage3.7vdc
Antenna impedance50Ω
Battery capacity5000mAH
Work temperature-20℃ to +60℃
Size(include battery, exclude antenna)56*29*136mm
Weight(include battery and antenna)143g
RECEIVING PERFORMANCE
Receiving Sensitivity- 122dBm( 12dB SINAD )
Adjcent Channel Selectivity25K≥65dB 12.5K≥60dB
Block≥80dB
Bigcnal-to-Noise Ratio25K≥45dB  12.5K≥40dB
Received Audio Power≥500mw
Audio Distortion≤5%
Frequency Stability+2.5ppm
Standby Time45-day
TRANSMITTING PERFORMANCE
Transmitting Power2W
Emission Current≤1300mA
Modulation Method16KФF3E/8KФF3E
Modulation Limitation+5KHz/+2.5KHz
Modulation distortion≤5%
Residual frequency modulation-45dB
Adjacent channel power-67dB
Emission stray-36dBm
Frequency stability+2.5ppm
Maximum frequency deviation25K≤5kHz 12.5K≤2.5kHz
