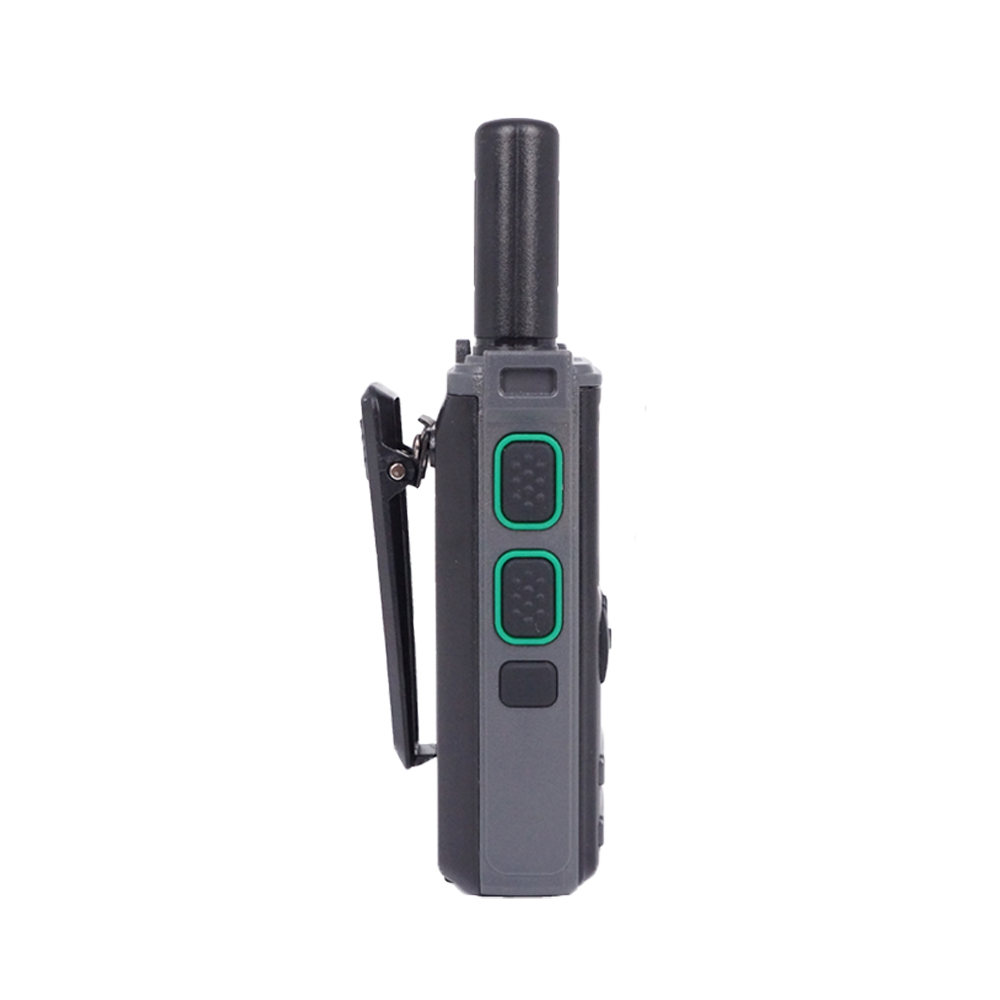

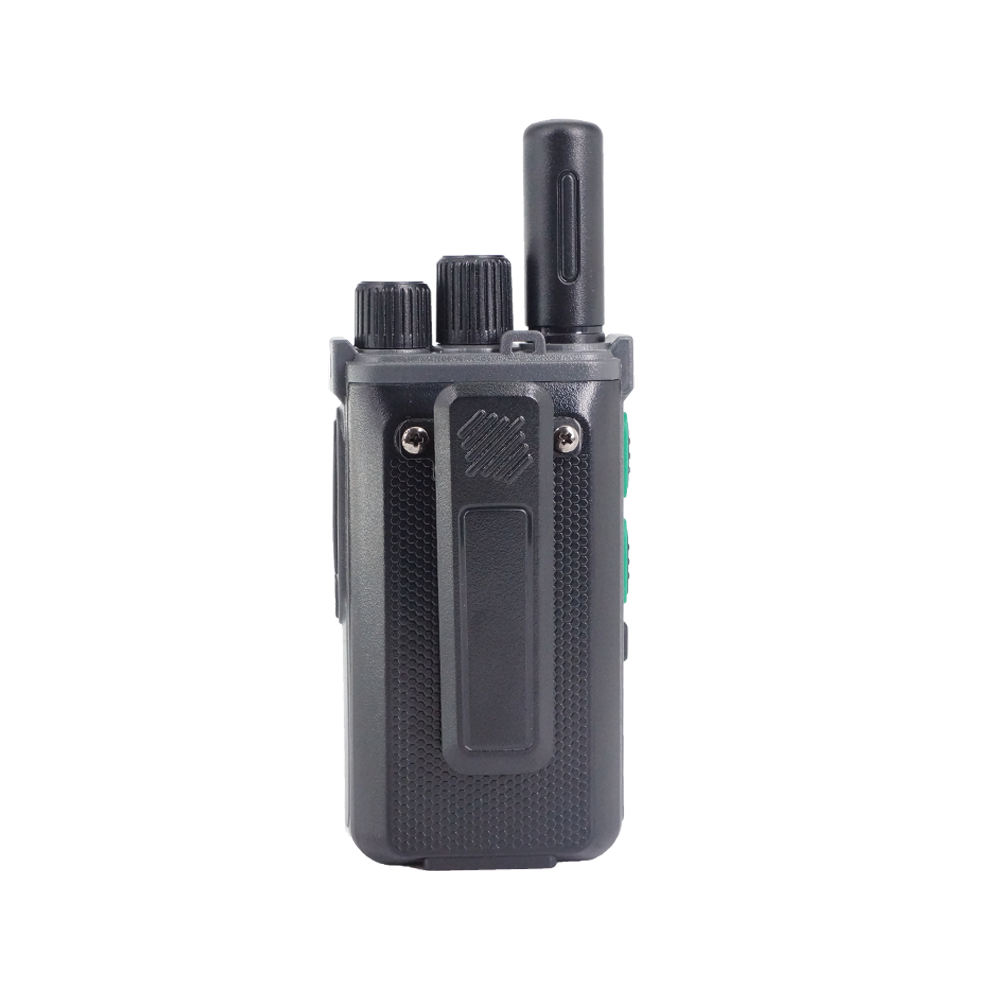

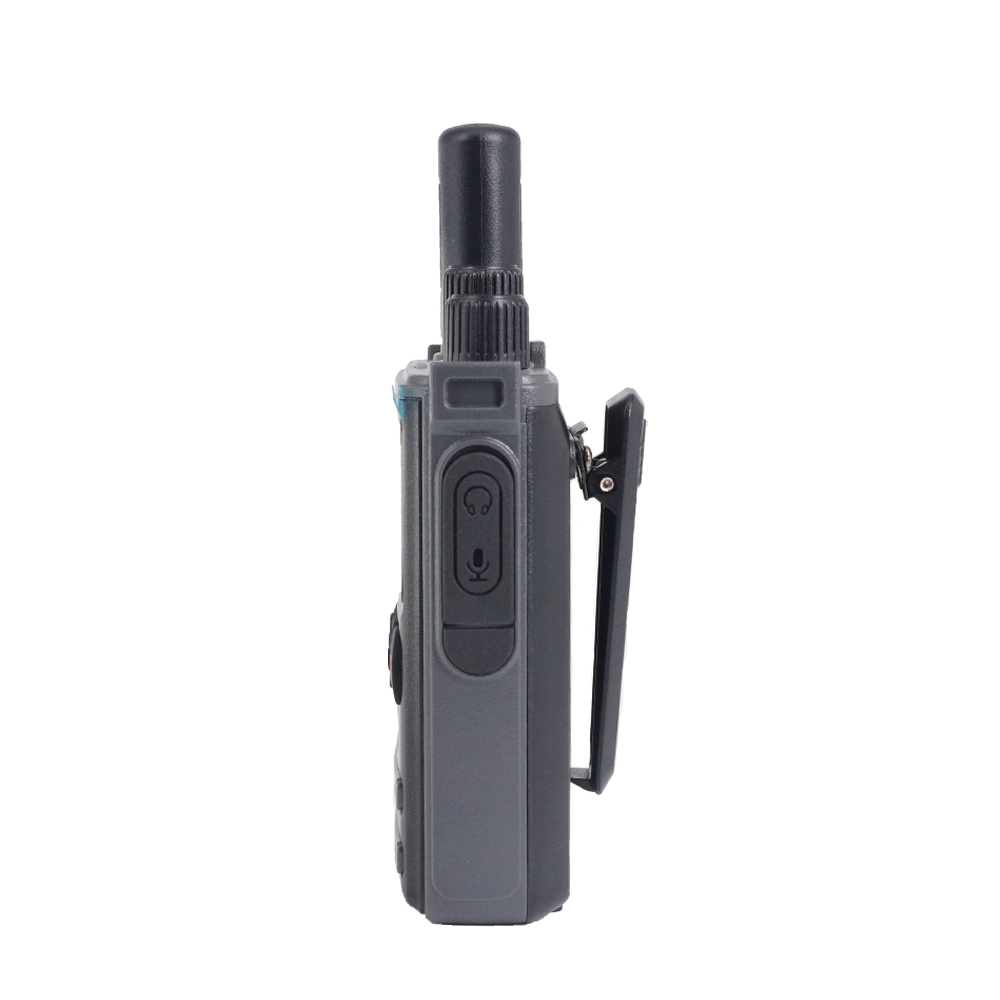

KP-811 POC Radio

  • Support Group Call, Single Call

  • Bluetooth (Optional)

  • Kenwood 2-pin Connector

  • Type-C Charging Port

  • POC+Analog Dual Mode

  • 1.77 Inch Color Screen

  • 2W Analog+4G POC

  • Overview
  • Details
2W Analog+4G POCBluetooth (Optional)
Type-C Charging PortPOC+Analog Dual Mode
1.77 Inch Color ScreenKenwood 2-pin Connector
Support Group Call, Single Call

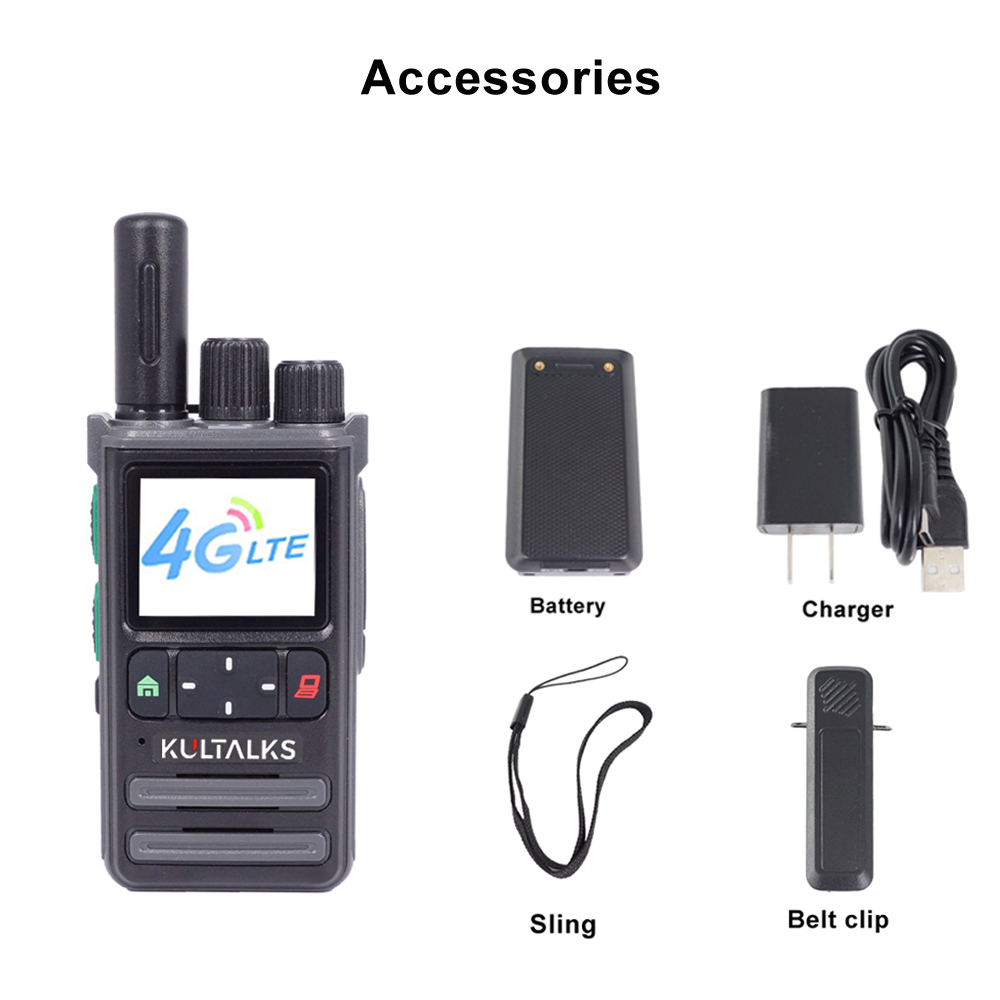

Accessories
Electrical Specifications
Asia versionFDD:B1/B3/B5/B8                                                                                               TDD:B34/B38/B39/B40/B41
EU VersionFDD:B1/B3/B5/B7/B8/B20/B28                                                                                          TDD:B38/B40/B41
American versionFDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B66                                                    TDD:B38/B40/B41
Dimensions: L* w*H (mm)195x145x60mm
Weight148g
Battery Capacity3000mAh
Standby Time7days
ChargerType-C charging
Working VoltageDC 4.2V
Working Temperature-10℃-+55℃
SIM CardDual SlM slots
Headphone cable3.55mm headphones
Audio output power1.3W@10 % Distortion
Receiving sensitivity-106dbm
Max Output Power2W
Analog Frequency400-470MHz
BluetoothOptional
