2400-Nanning Hizbao Security Equipment Co., Ltd

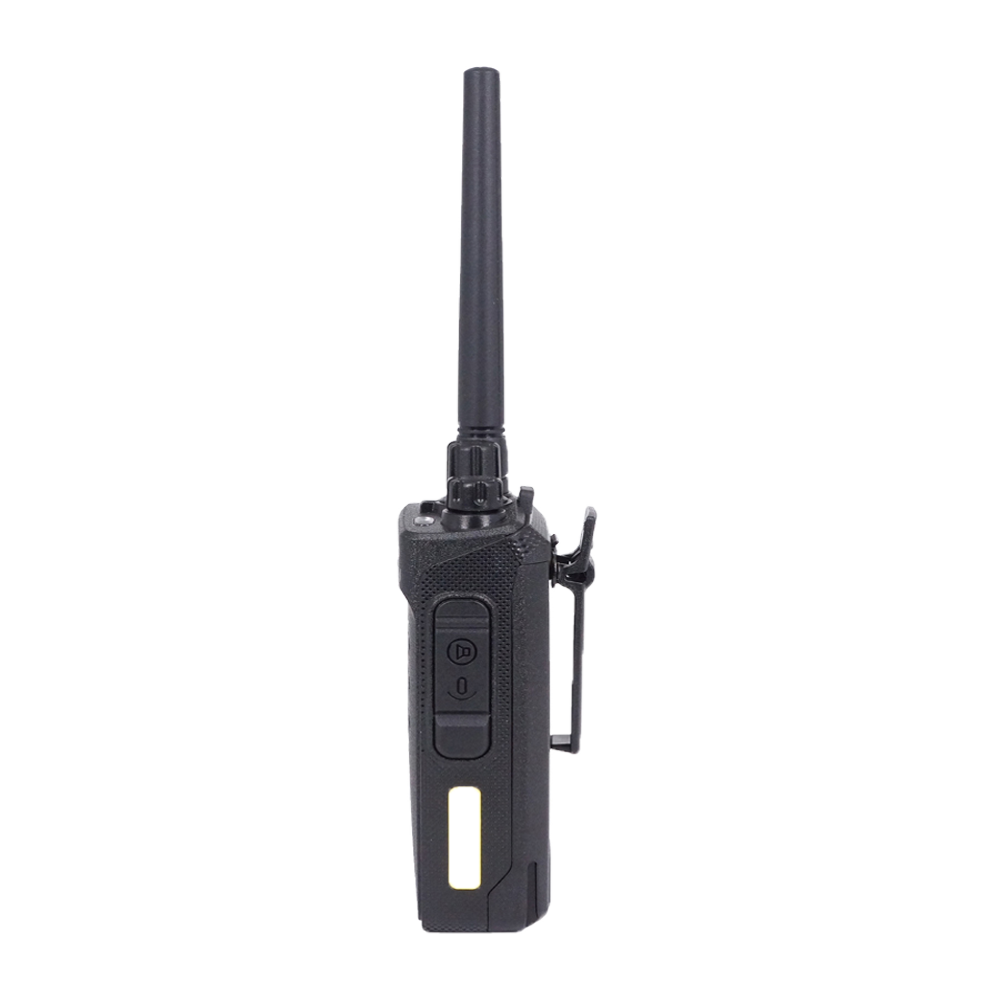

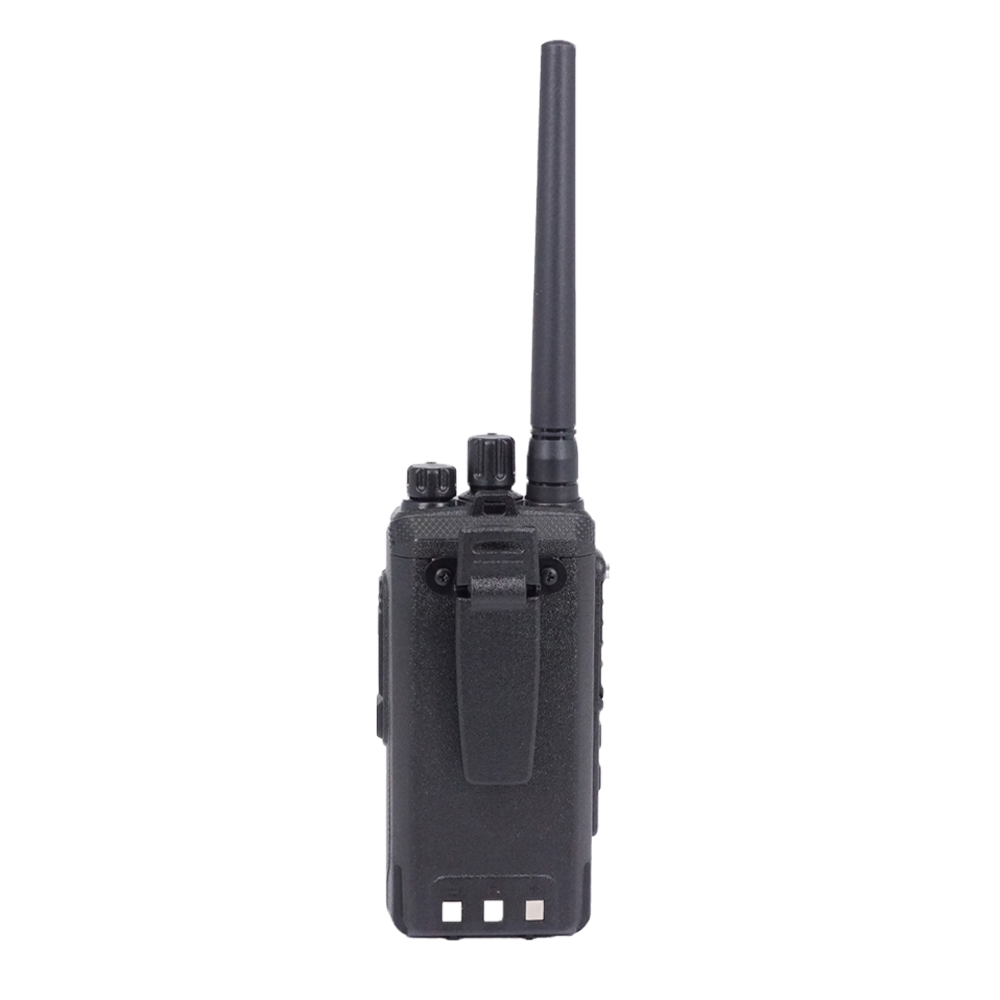

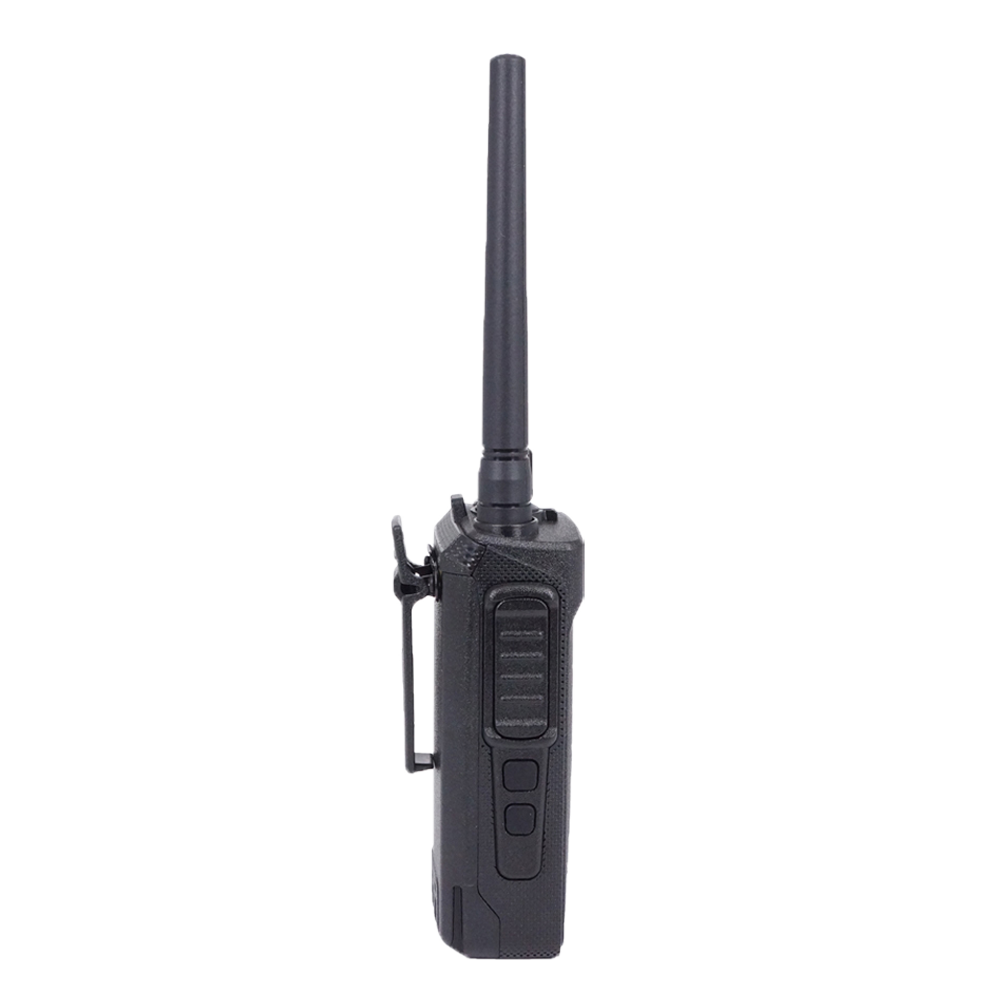

2400 Analog Two Way Radio

Low Battery Alert	Scanning Function
Scrambler Function	128 Storage Channels
Transmit Time-out Timer	Wide/Narrow Band Selection
VOX Voice Control Function	Chinese/English Voice Prompts
50 CTCSS groups and 105 DCS groups

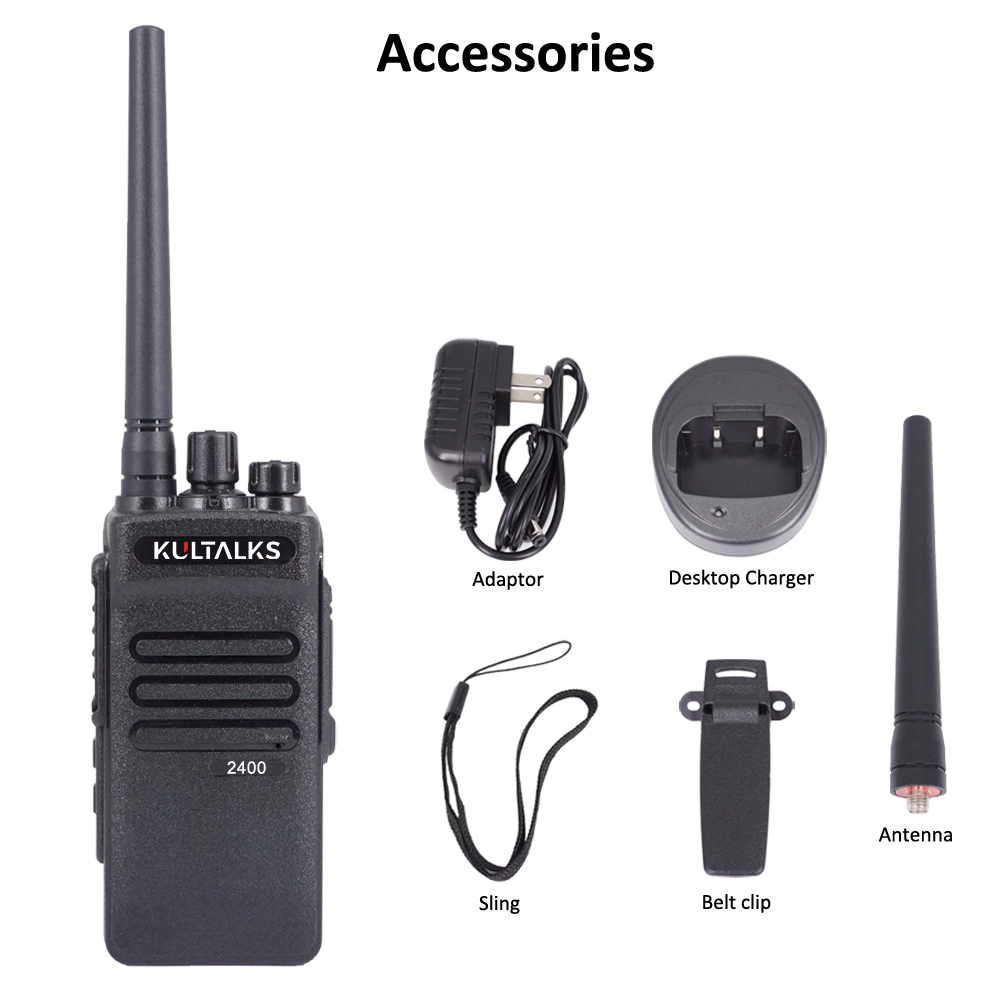

Accessories

STANDARD SPECIFICATIONS
Frequency		UHF:400-470MHz
Channel capacity		128
Channel space		12.5KHz/25KHz
Voltage		7.4vdc
Antenna impedance		50Ω
Battery capacity		2500mAH
Work temperature		-20℃ to +60℃
Size(include battery, exclude antenna)		1303356mm
Weight(include battery and antenna)		143g
RECEIVING PERFORMANCE
Receiving Sensitivity		<0.6uV( 12dB SINAD )
Adjcent Channel Selectivity		25K≥65dB 12.5K≥60dB
Block		≥80dB
Bigcnal-to-Noise Ratio		25K≥45dB 12.5K≥40dB
Received Audio Power		≥0.5w
Audio Distortion		≤5%
TRANSMITTING PERFORMANCE
Transmitting Power		10W
Modulation Method		16KФF3E/8KФF3E
Modulation Limitation		+5KHz/+2.5KHz
Modulation distortion		≤5%
Residual frequency modulation		-45dB
Adjacent channel power		-67dB
Emission stray		-36dBm
Maximum frequency deviation		25K≤5kHz 12.5K≤2.5kHz
Frequency Stability		+2.5ppm
