Home KT70

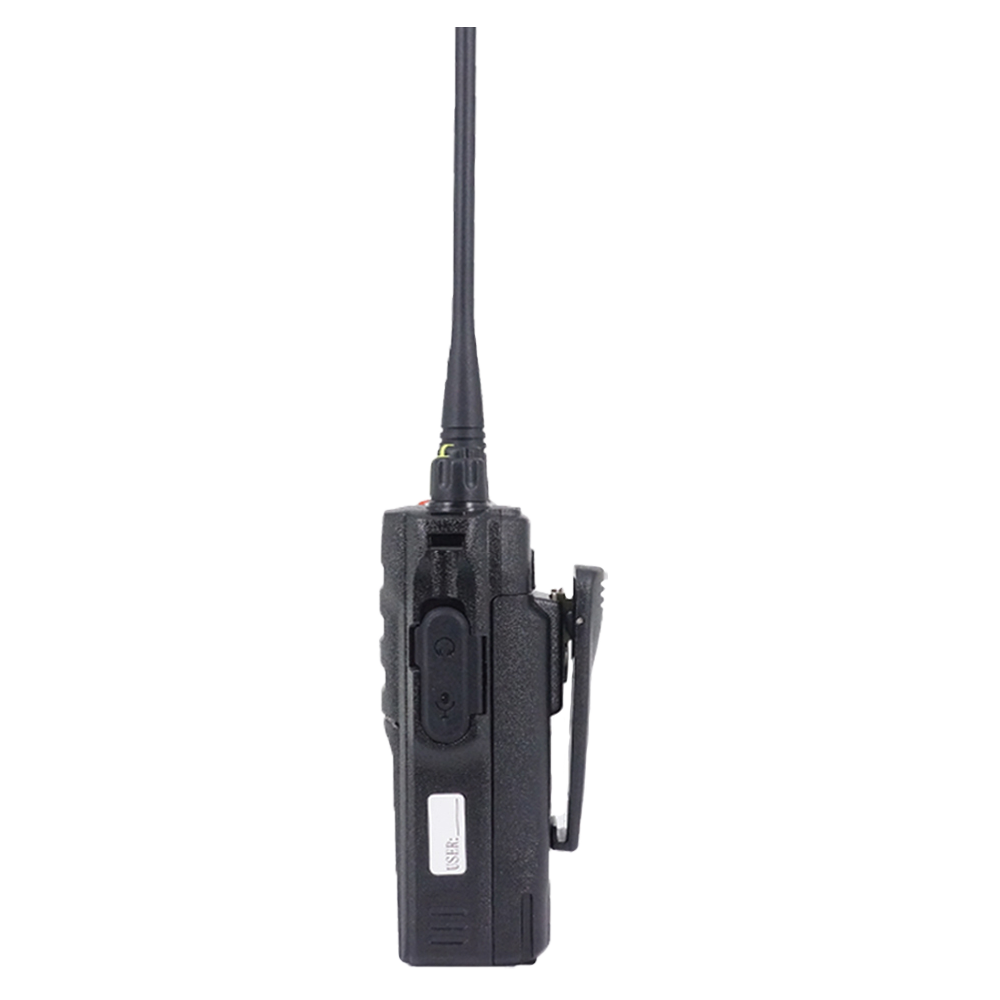

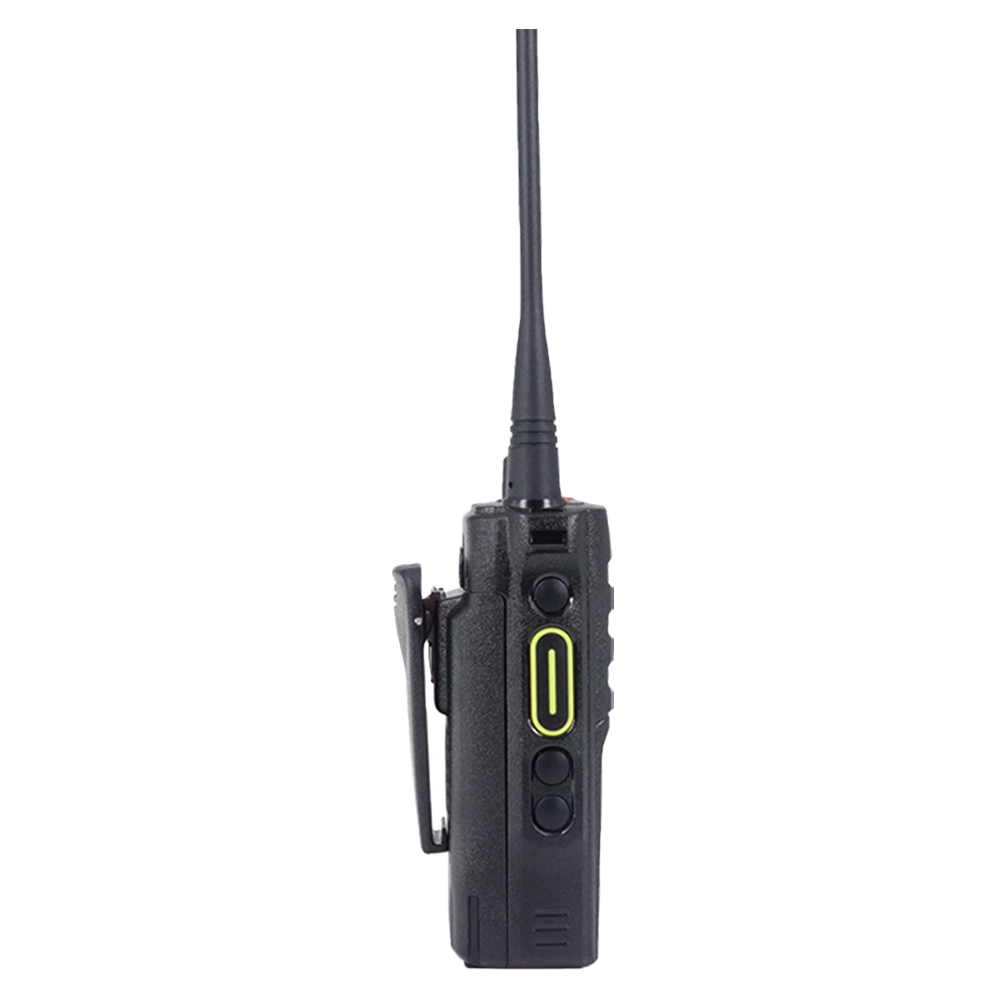

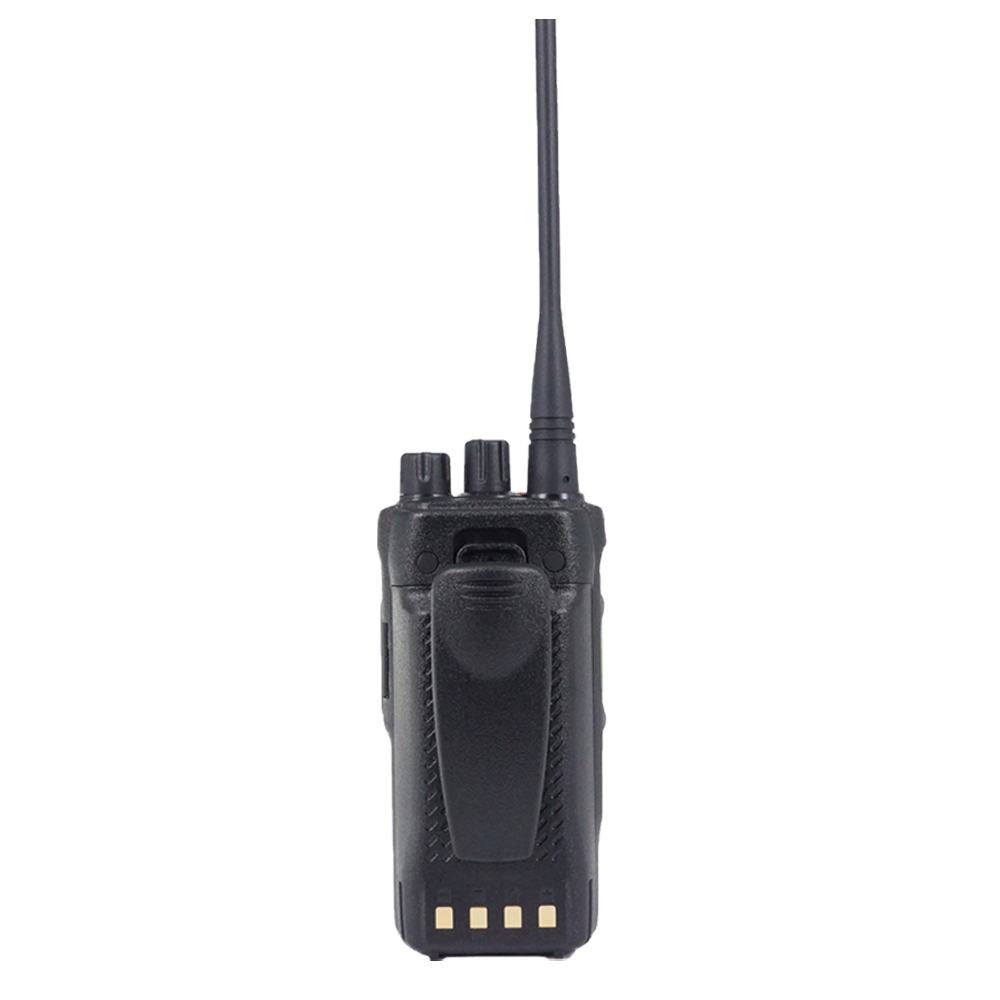

KT70 Analog Two Way Radio

  • High/Low Power Selectable

  • Noise Reduction (Optional)

  • 10W High Power Output

  • Type-C Charging

  • Wireless Cloning

  • IP67 Waterproof

  • QT/DQT Function

  • Emergency Alarm

  • Freq Check

  • TOT Function

  • SOS Function

  • Overview
  • Details
SOS FunctionTOT Function
Freq CheckEmergency Alarm
QT/DQT FunctionIP67 Waterproof
Wireless CloningType-C Charging
10W High Power OutputHigh/Low Power Selectable
Noise Reduction (Optional)

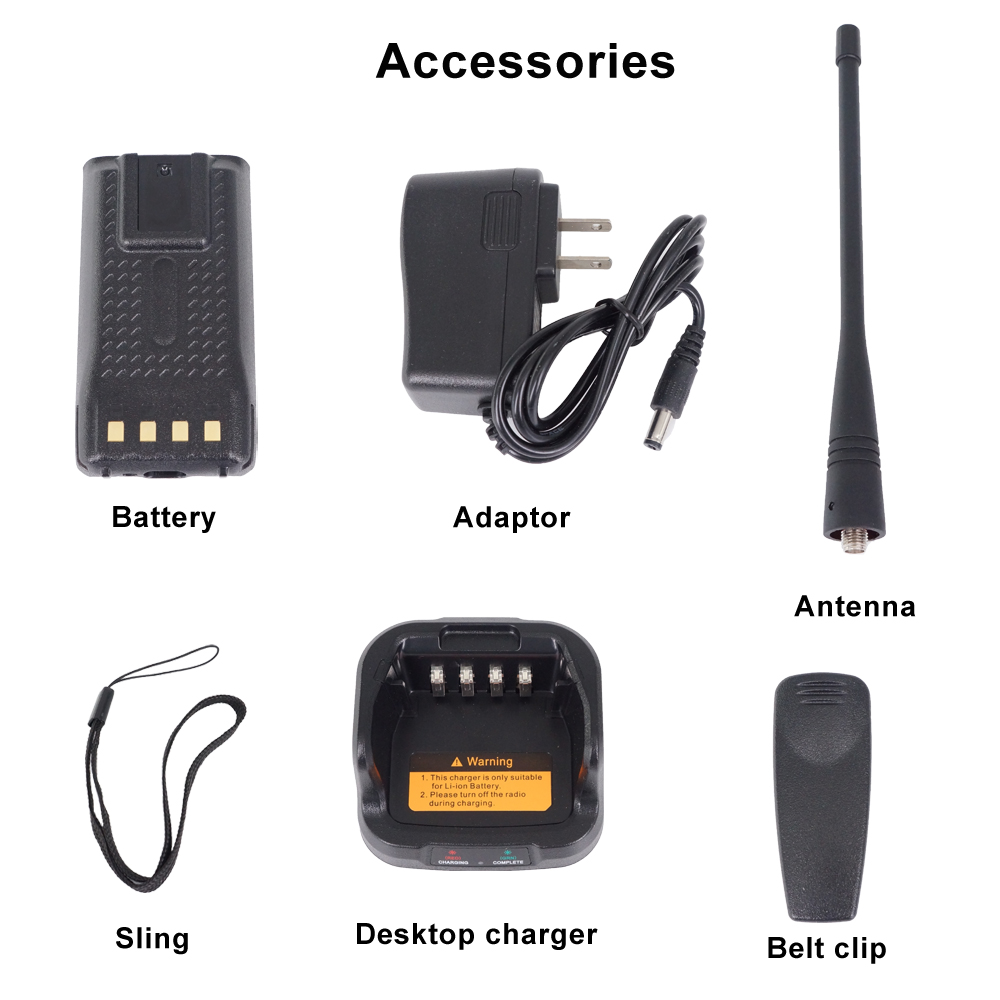

Accessories
GENERAL SPECIFICATIONS
Frequency60-88MHZ / VHF:136-174MHZ / UHF:400-470MHZ
Channel capacity199
Operating ModeSimplex or Semi-Duplex
Voltage7.4vdc
Antenna impedance50Ω
Battery capacity2600mAH
Antenna ConfigurationLoaded Antenna
Work temperature-25℃ to +60℃
Size(include battery, exclude antenna)139*63*47mm
Weight(include battery and antenna)303g
TRANSMITTER SECTION
Output Power10W
Modulation Mode16KF￠3E
Spurious RF Components≤7.5μW
Modulation Noise<-40dB
Modulation Distortion<5%
Maximum Frequency Deviation≤5K
Frequency Tolerance5ppm
Adjacent Channel Power≥65dB
Transmission Current≤2.5A
RECEIVER SECTION
Sensitivity≤0.2μV
Occupied Bandwidth≤16KHZ
Intermodulation≥55dB
Audio Output Power1.5W
Audio Distortion≤5%
Receive Current330mA


Downloads
Title Language Size
More Repeater System products
