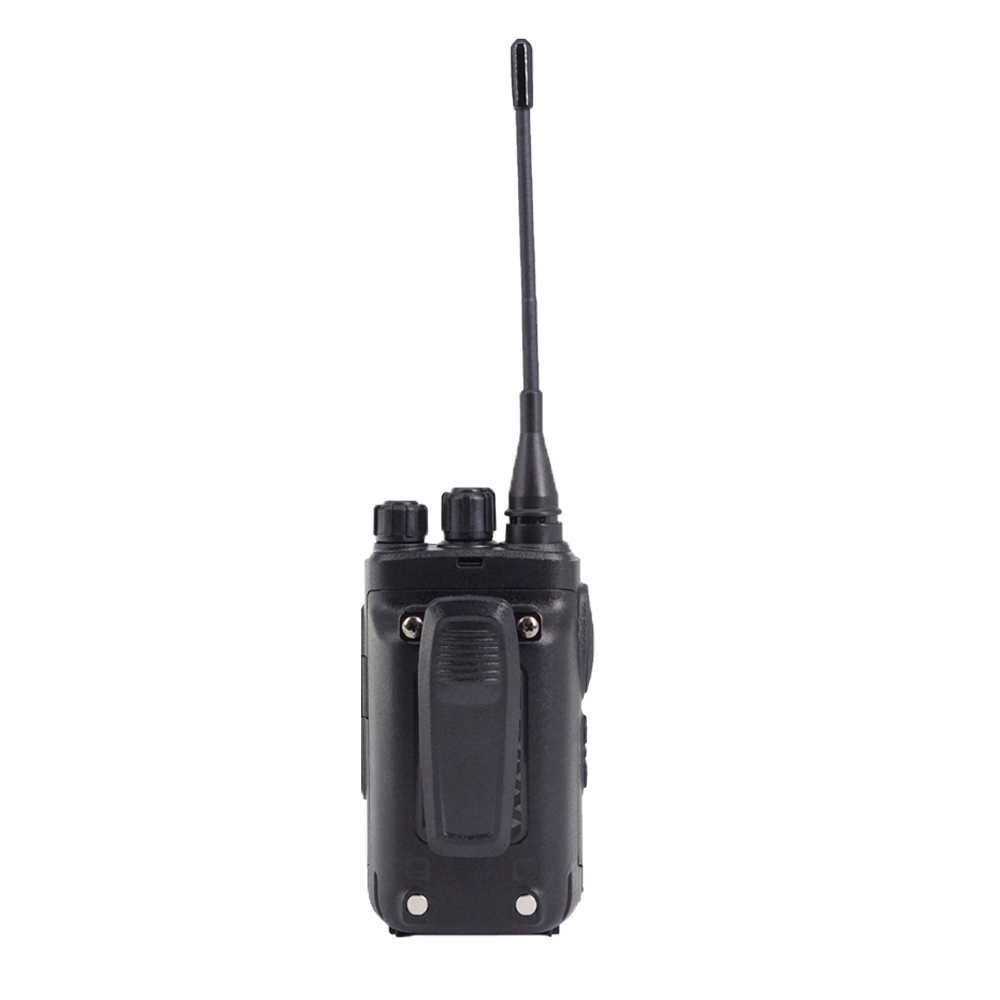

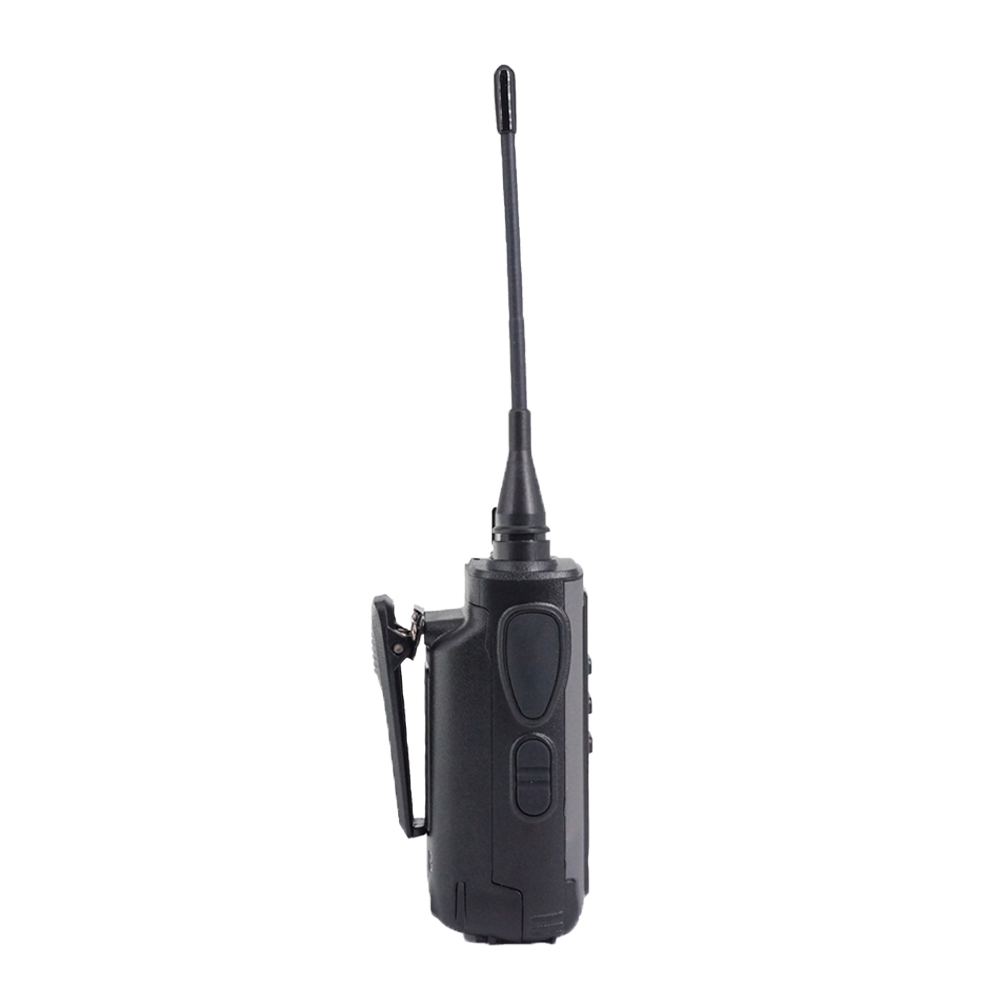

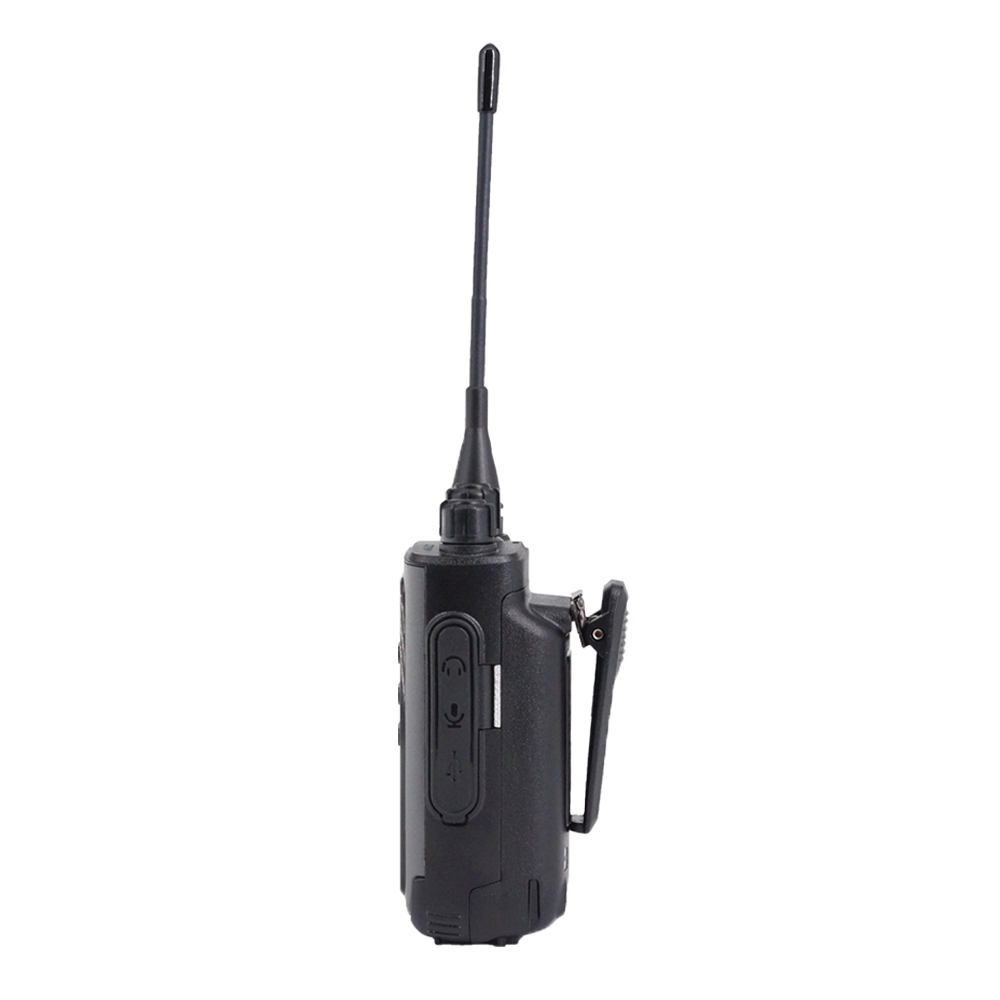

KT58 Analog Two Way Radio

  • Rejection/Pressure Expansion Function

  • Definition Of Side Key Function

  • VOX Voice Control Function

  • Wide/Narrow Band Selection

  • High/Low Power Selection

  • Special Mute Function

  • QT/DQT Function

  • Compact Body

  • Scanning Function

  • Overview
  • Details
Compact BodyScanning Function
QT/DQT FunctionSpecial Mute Function
High/Low Power SelectionWide/Narrow Band Selection
VOX Voice Control FunctionDefinition Of Side Key Function
Rejection/Pressure Expansion Function

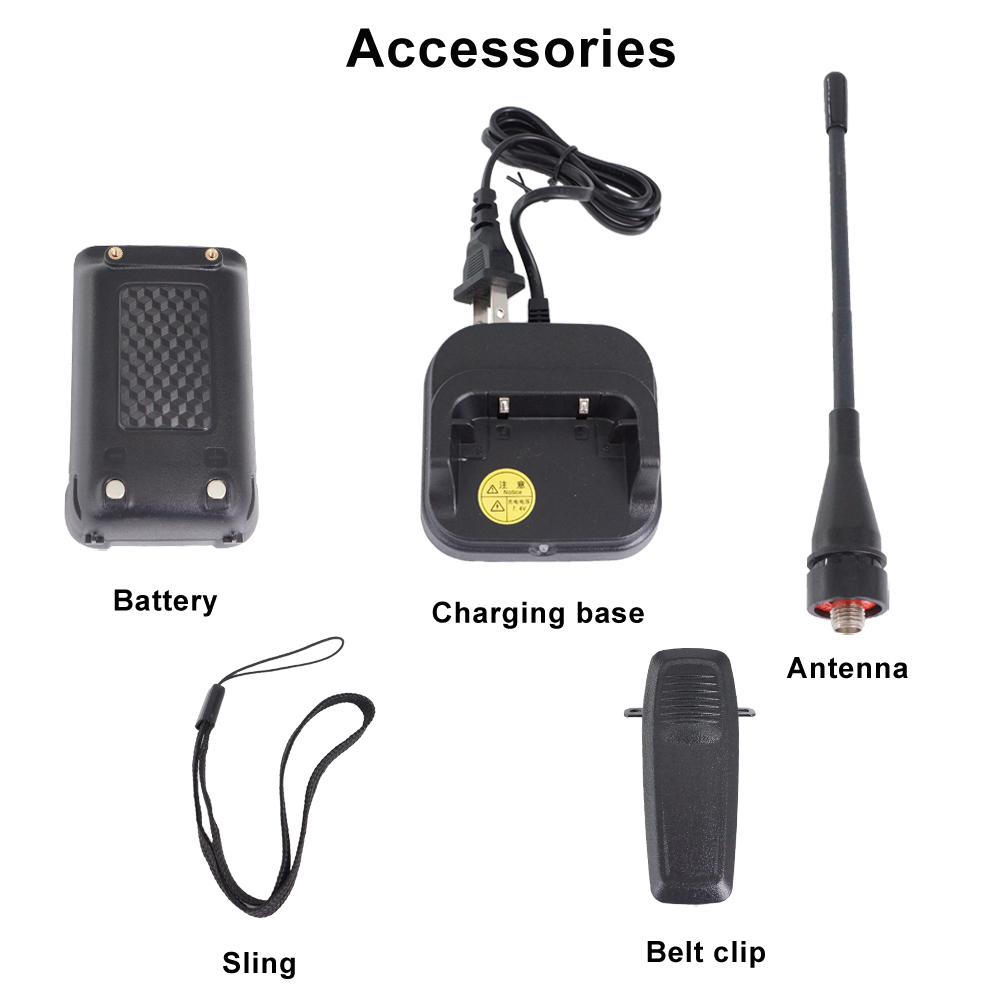

Accessories
GENERAL
Frequency400-470MHz
Channel capacity16
Channel space12.5KHZ
Frequency stability1.25ppm
Voltage7.4vdc ±20%
Antenna impedance50Ω
Work temperature-25℃ to +60℃
Battery capacity2000mAh
Size(include battery, exclude antenna)170 x190 x 50mm
Weight(include battery and antenna)224g
TRANSMITTER
Output power5W
Modulation limit≤±5KHz/25kHz
FM Hum & Noise45dB@25KHz
Modulation maximum deviation≥70db
RECEIVER
Sensitivity (12 dB SINAD)0.20uV @12.5KHz/25KHz typical
Adjacent channel selectivity65dB@20/25KHz
Audio output power≥400mW
Audio distortion5%@1W
