Home KT35
KT35 Analog Two Way Radio

  • 2W Analog + Bluetooth UU Talk, Unlimited Range

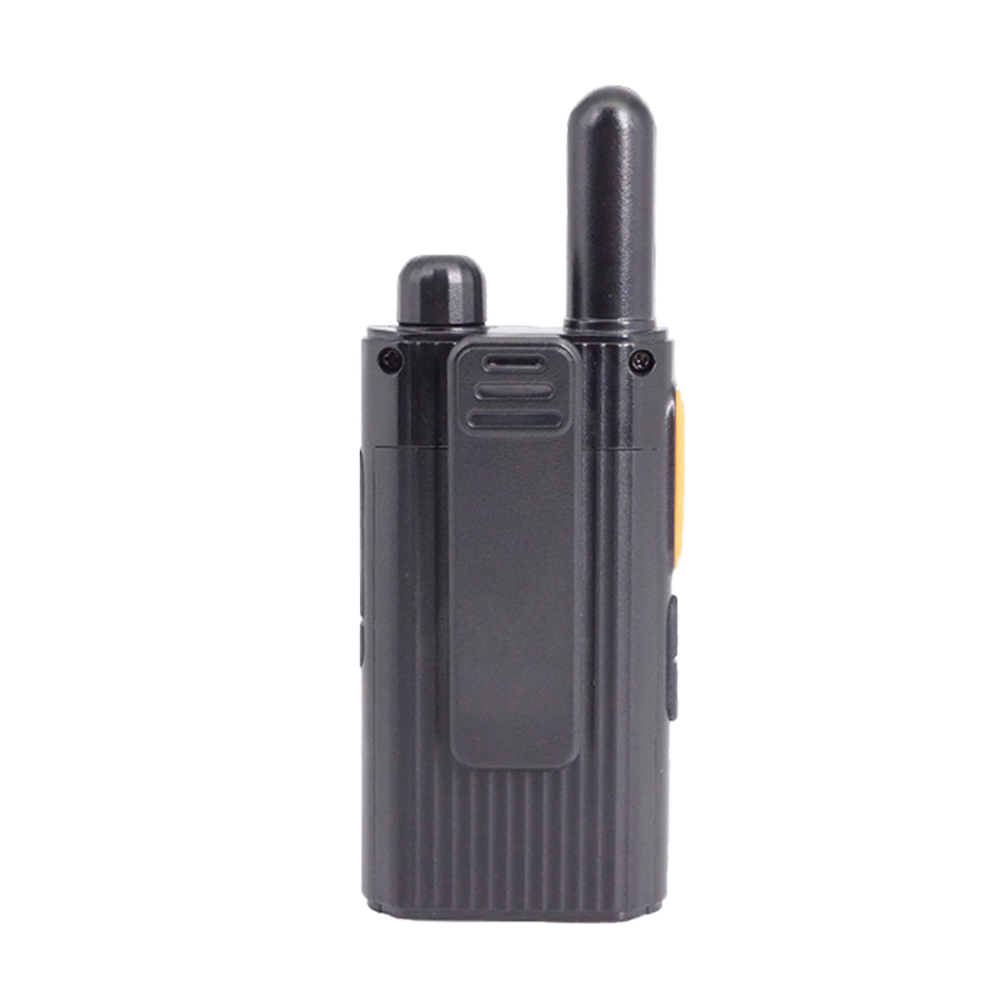

  • Easy Back Clip Design

  • Type-C Charger Port

  • Wireless Copy Frequency

  • Scanning Function

  • Bluetooth Function

  • High /Low Output

  • VOX Function

  • Overview
  • Details
VOX FunctionHigh /Low Output
Bluetooth FunctionScanning Function
Wireless Copy FrequencyType-C Charger Port
Easy Back Clip Design2W Analog + Bluetooth UU Talk, Unlimited Range

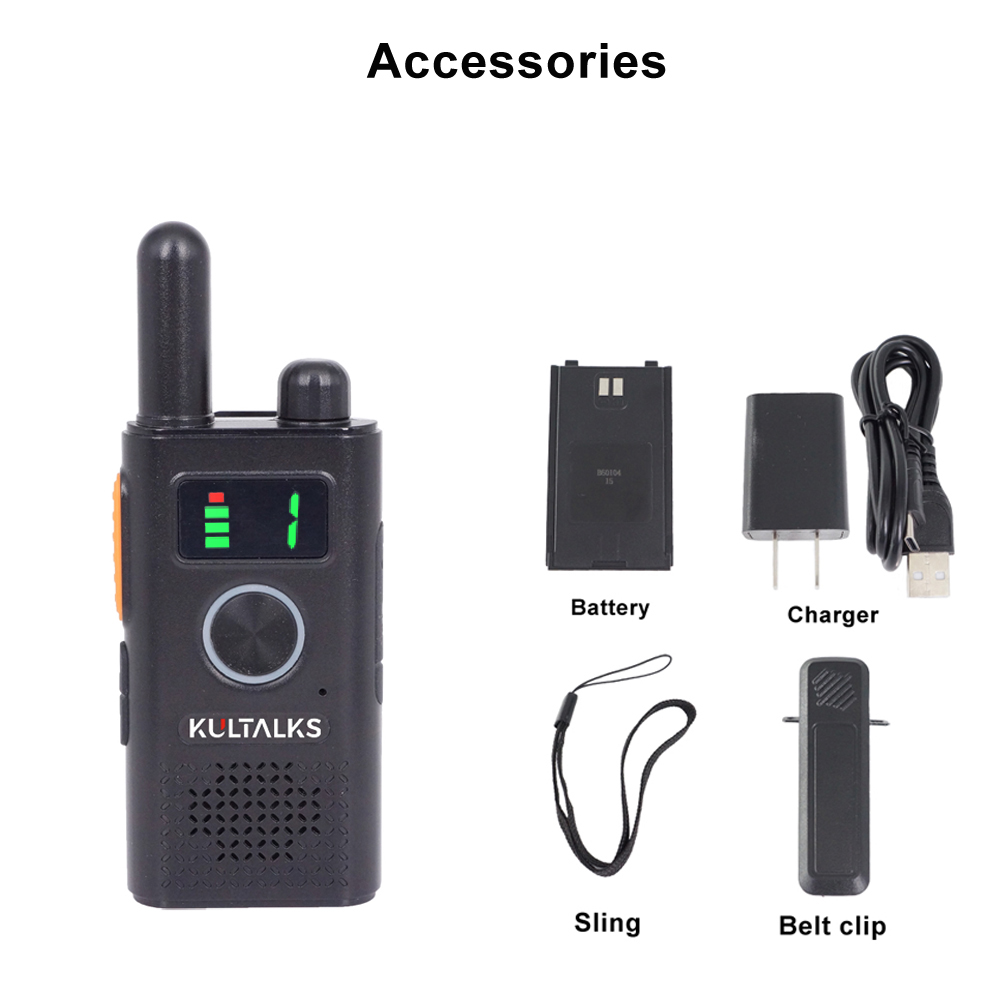

Accessories
GENERAL
FrequencyUHF:400-470MHz
Channel capacity16
Channel space12.5KHZ
Frequency stability±2.5ppm
Voltage3.7vdc
Antenna impedance50Ω
Work temperature-20℃ to +50℃
Battery capacity1500mAh
Size(include battery, exclude antenna)170 x190 x 50mm
Weight(include battery and antenna)109g
TRANSMITTER
Output power2W
Modulation limit±2.5kHz@12.5kHz
FM Hum & Noise≤45dB
Modulation maximum deviation≤5KHz
RECEIVER
Sensitivity (12 dB SINAD)8-12mW
Adjacent channel selectivity≥65dB
Audio output power≥350mW
Audio distortion<10%


Downloads
Title Language Size
