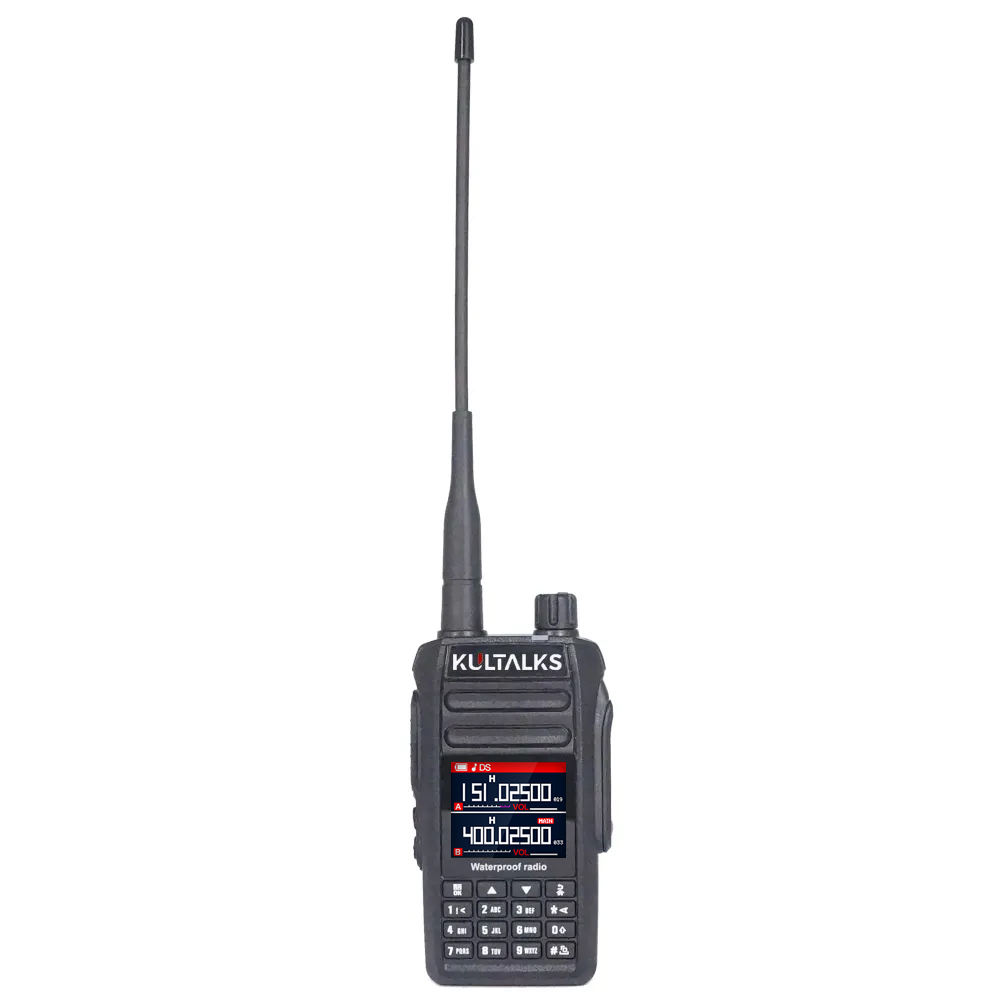

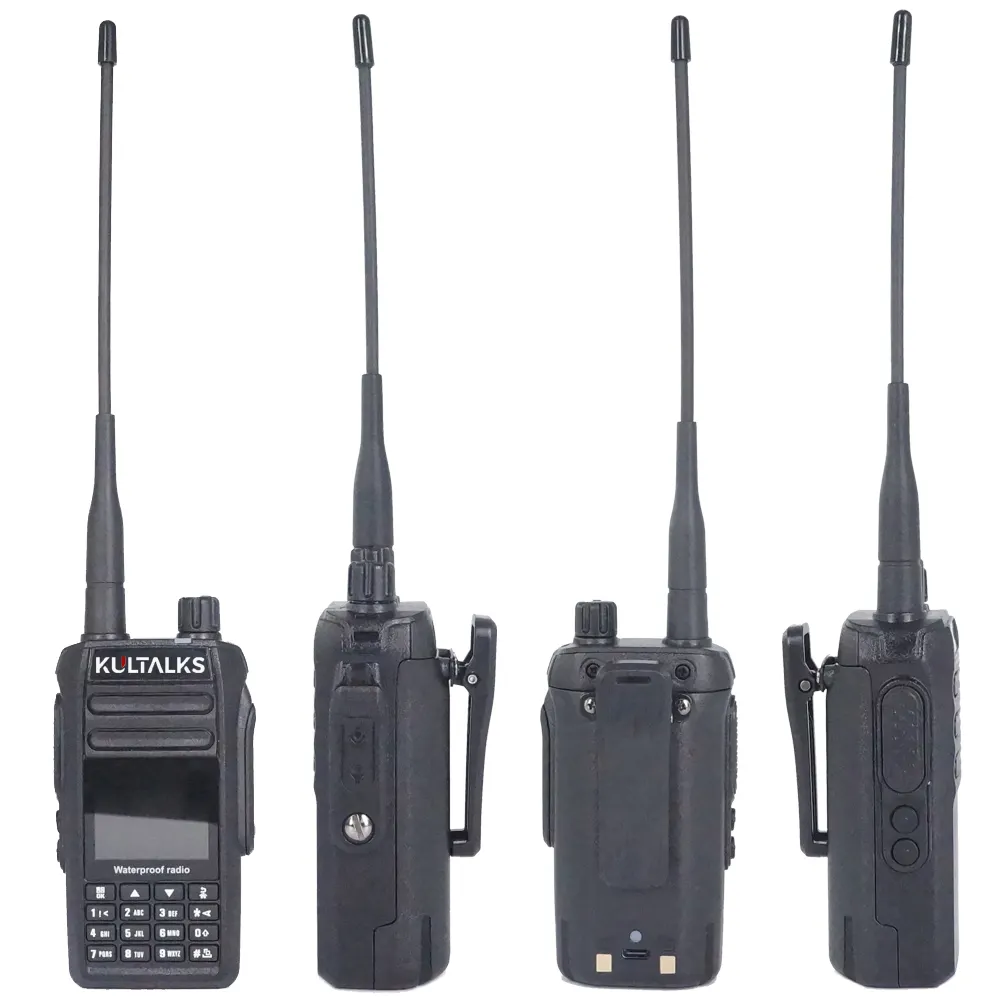

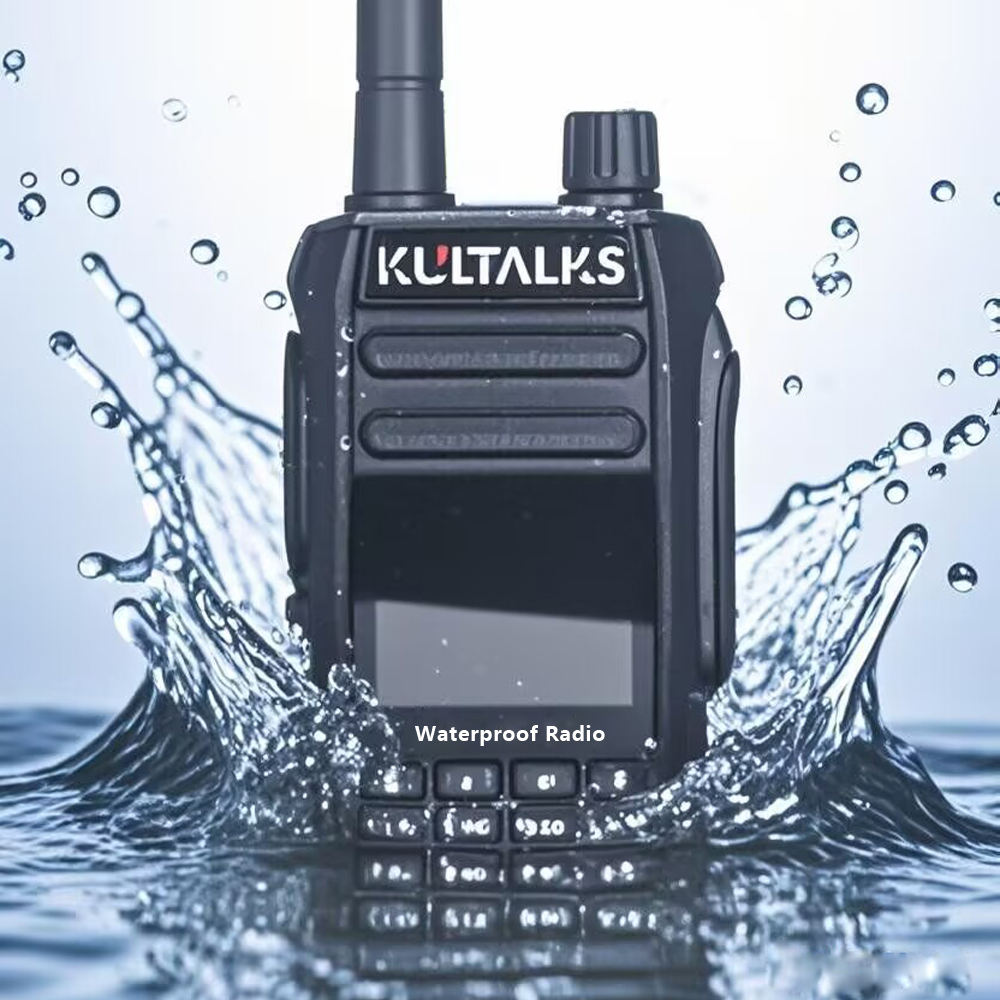

IP68 Waterproof level
10W High Power
Wireless Frequency Copy
Frog Sound Tail Tone
256 Channel
Type-C Port
AM/FM Aviation Band Receiving
GENERAL
Frequency
FM:65-108MHz AM:108-136MHz VHF:136-174&220-260MHz UHF:350-390&400-520MHz256
Channel capacity
256
Channel space
12.5/25KHZ
Frequency stability
±2.4ppm
Voltage
7.4V
Antenna impedance
50Ω
Work temperature
-20℃ to +60℃
Battery capacity
2600mAh

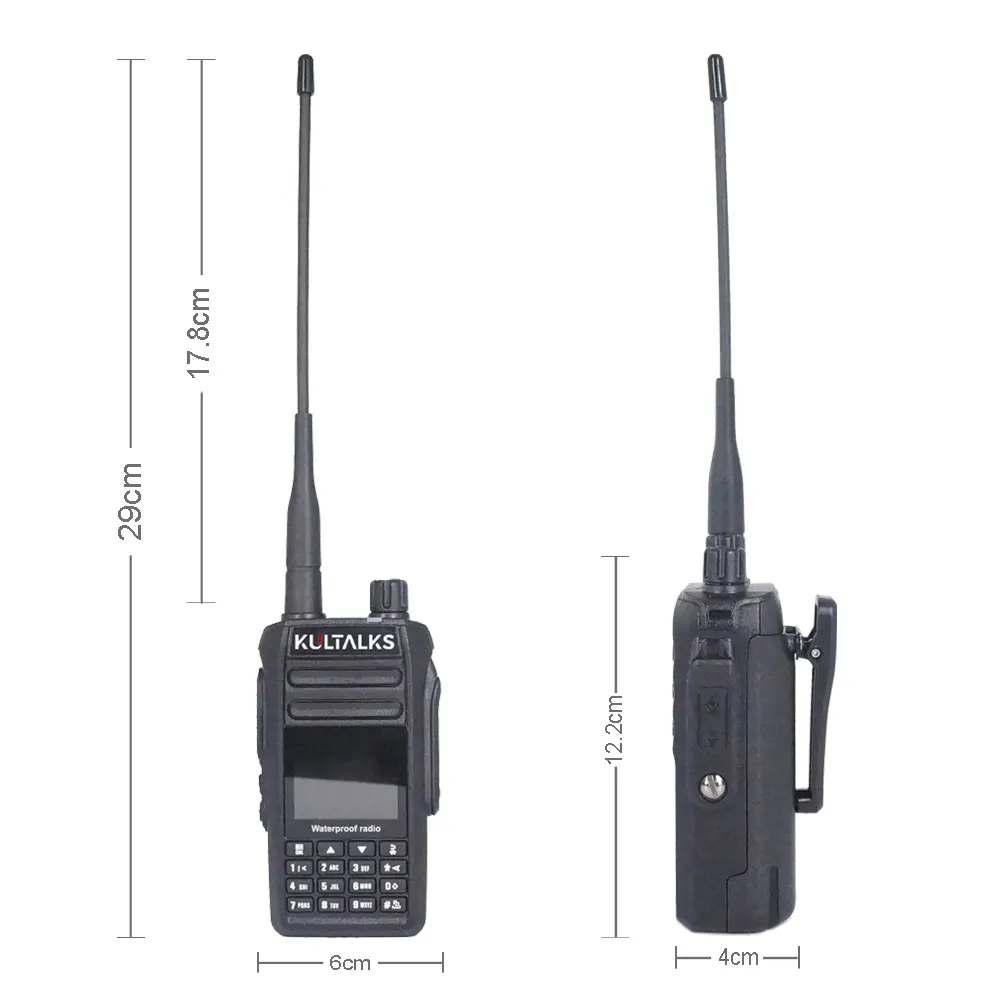

Size(include battery, exclude antenna)
120x62x40 mm
Weight(include battery and antenna)
283g
TRANSMITTER
Output power
10W
Modulation limit
≤4.2
FM Hum & Noise
45dB@25KHz
Modulation maximum deviation
≥70dB
RECEIVER
Sensitivity
25dB
Adjacent channel selectivity
≤55dB
Audio output power
≥400mW
Audio distortion
≤3%
