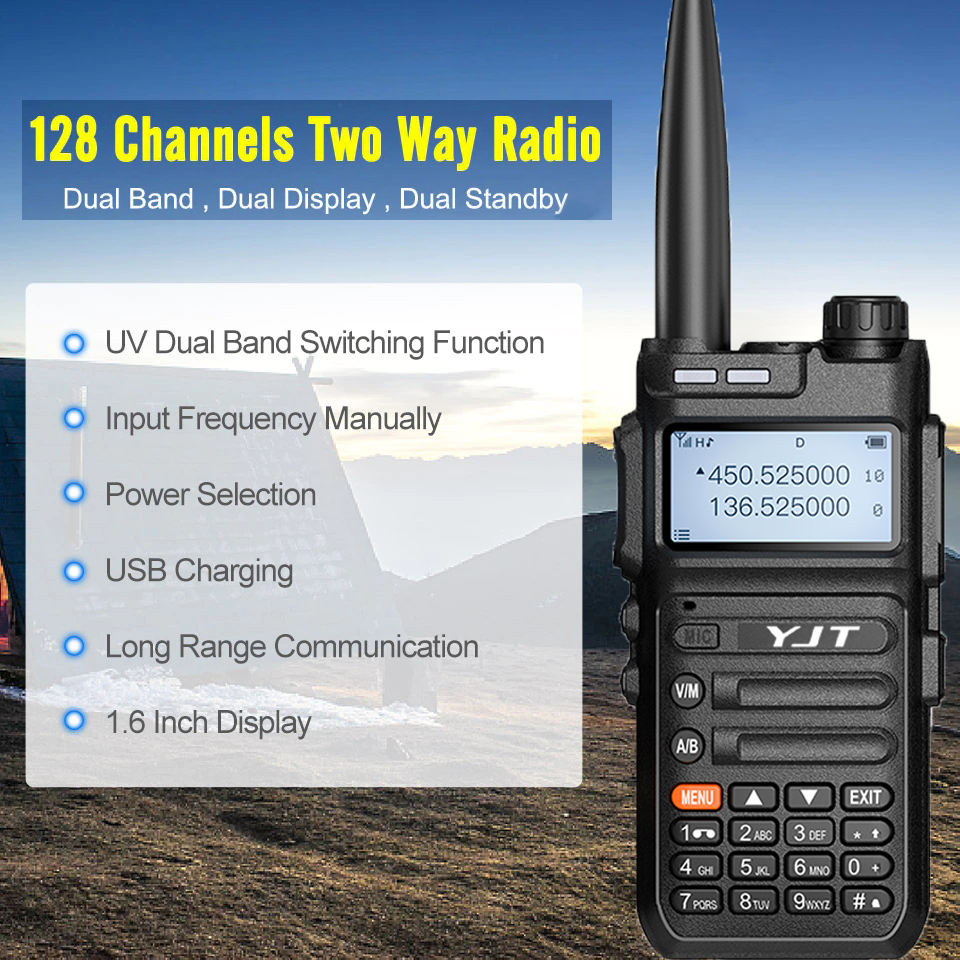

With FCC Certificate
Frequency:136-174MHZ & 400-470MHZ
Dual band, dual display, dual standby
High,medium and low power switch
Emergency alarm and ANlidentification through
Time-out Timer (TOT)
Wireless Frequency Copy
VOX
Channel scan, CTCSS/DCS scan
Scramble function
FM Radio

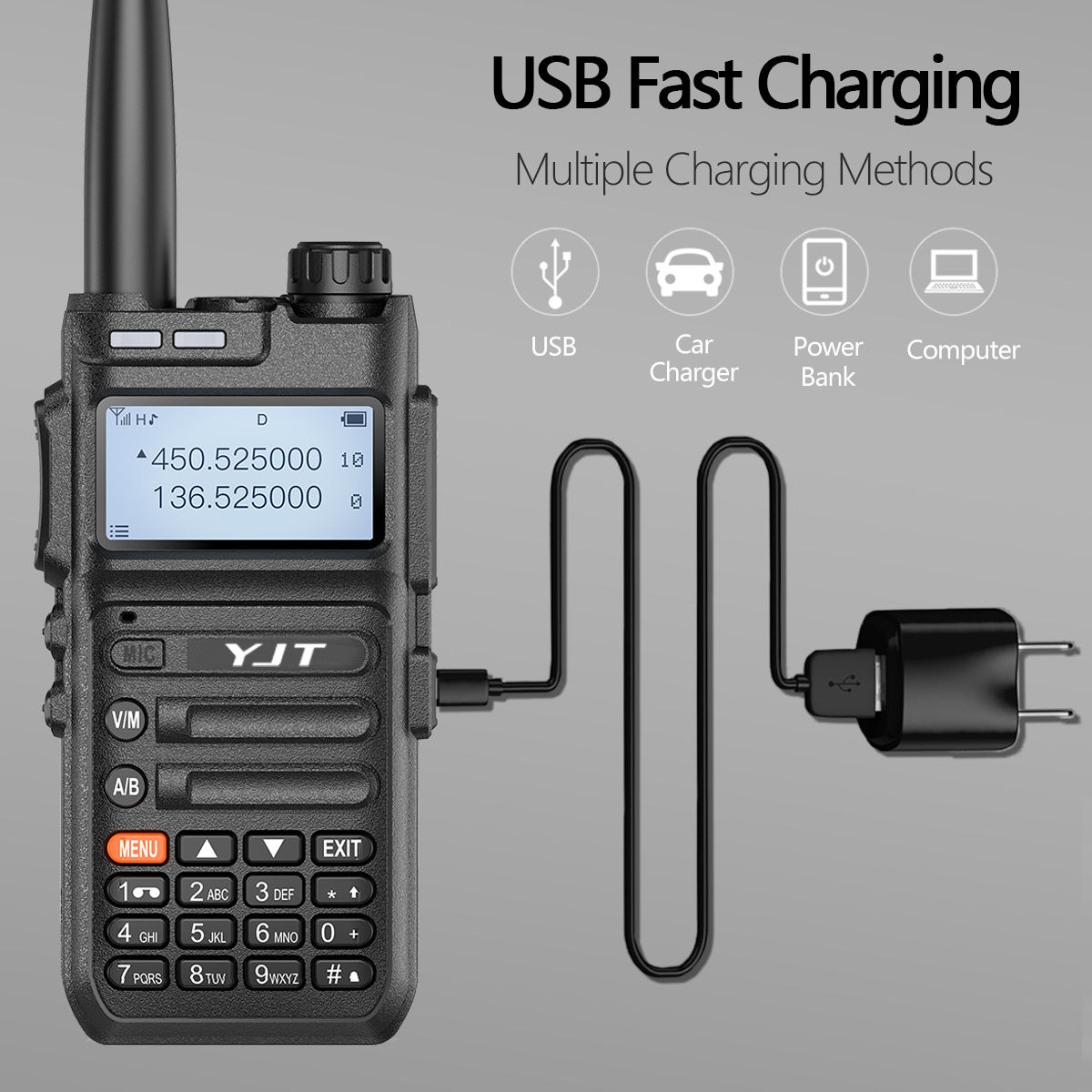

USB charging
Flashlight
GENERAL
Frequency
UHF:400-470MHZVHF: 136-174MHZ
Channel capacity
128
Channel space
12.5/25KHZ
Frequency stability
±2.5ppm
Voltage
7.4vdc
Antenna impedance
50Ω
Work temperature
-25℃ to +55℃
Battery capacity
1800mAh
Size(include battery, exclude antenna)
121*61*33mm
Weight(include battery and antenna)
223g
TRANSMITTER
Output power
5W
Modulation
16K0F3E@25KHZ,11K0F3E@12.5KHZ
FM Noise
45dB@25KHz,40dB@12.5KHz
Modulation maximum deviation
≤±5KHz
RECEIVER
Sensitivity (12 dB SINAD)
0.25uV(12dB SINAD)
Adjacent channel selectivity
≥55dB@12.5KHZ
Audio output power
1W@16 ohms
Audio distortion
≤5%
